Convotherm OEB Series User Manual

Service Handbook OEB/OES/OGB/OGS

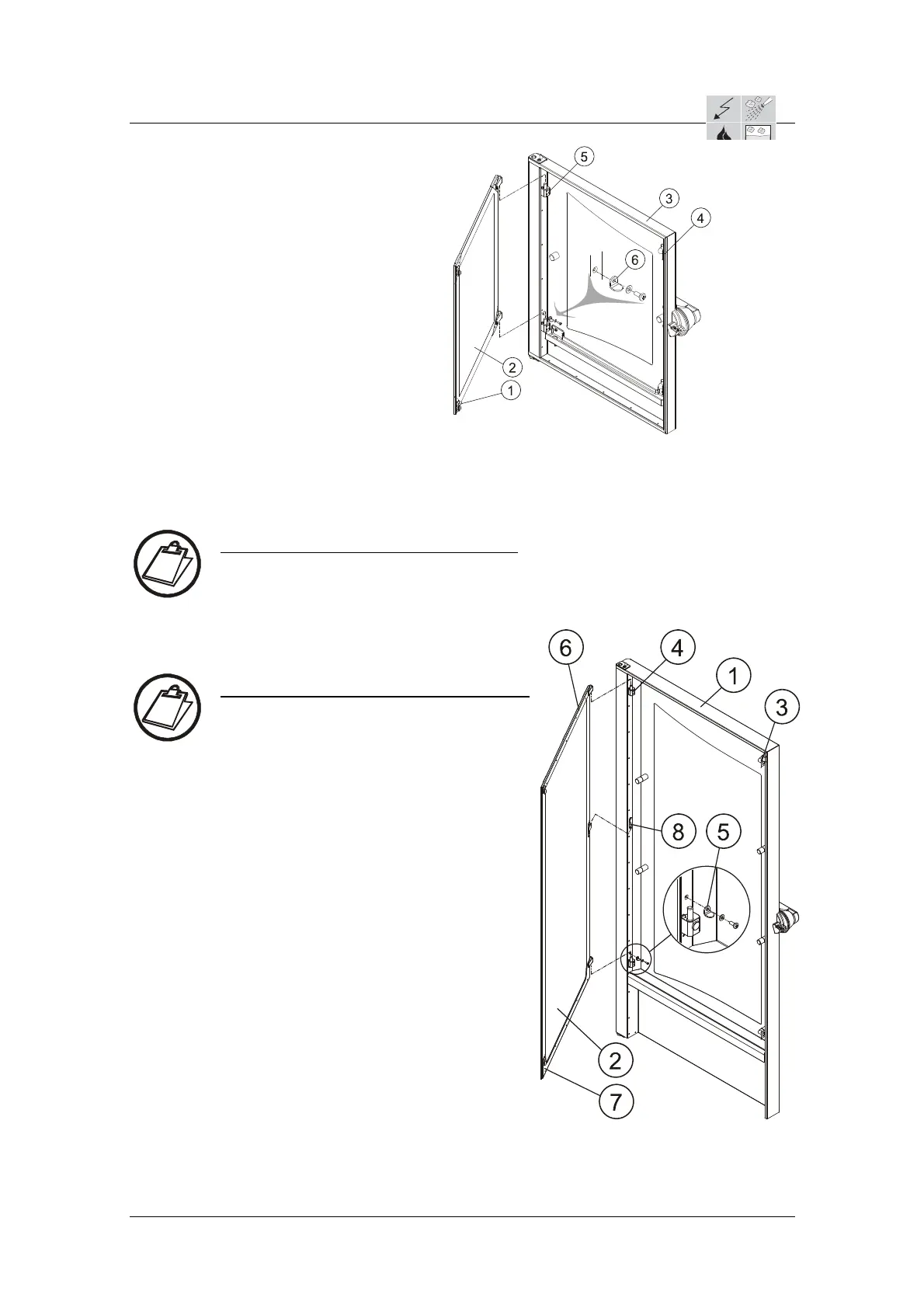

1 = Locking corner
2 = Inner door
3 = Outer door
4 = Holding clamp
5 = Hinge inner door
6 = Hinge safety
6.17.2 Replacing the inner door on standing units
Instructions – Removing the inner door:
 Open the holding clamps 4 on the inner door and swing out the inner door 2.
 Remove the hinge safety on the lower hinge.

Lift out the inner door 2 first and then out from above and under the pins of
hinges 5.
Instructions – Assembling the inner door:
 Place the inner door 2 above and under
the pins of the hinges 5 and set in place.
 Assemble the hinge safety.
 Swing the inner door 2 closed and
clap onto the holding clamps 4.
 Grease the hinge.
1 = Outer door
2 = Inner door
3 = Holding clamps
4 = Hinge inner door
5 = Hinge safety
6 = Strap hinge upper
7 = Strap hinge lower
8 = Door clasp
AS/11-2011 6_17e_Inner and outer door replacement_b
Page 2 / 4
