Service Handbook OEB/OES/OGB/OGS
6.30.1 Disappearing door adjustment
Safety:
Page 2 / 4

Maintenance and repair should only be performed on a cold unit.
Information:
 A defective or hanging door is replaced.
 Door gap to front piece >< 10 mm
Instructions:

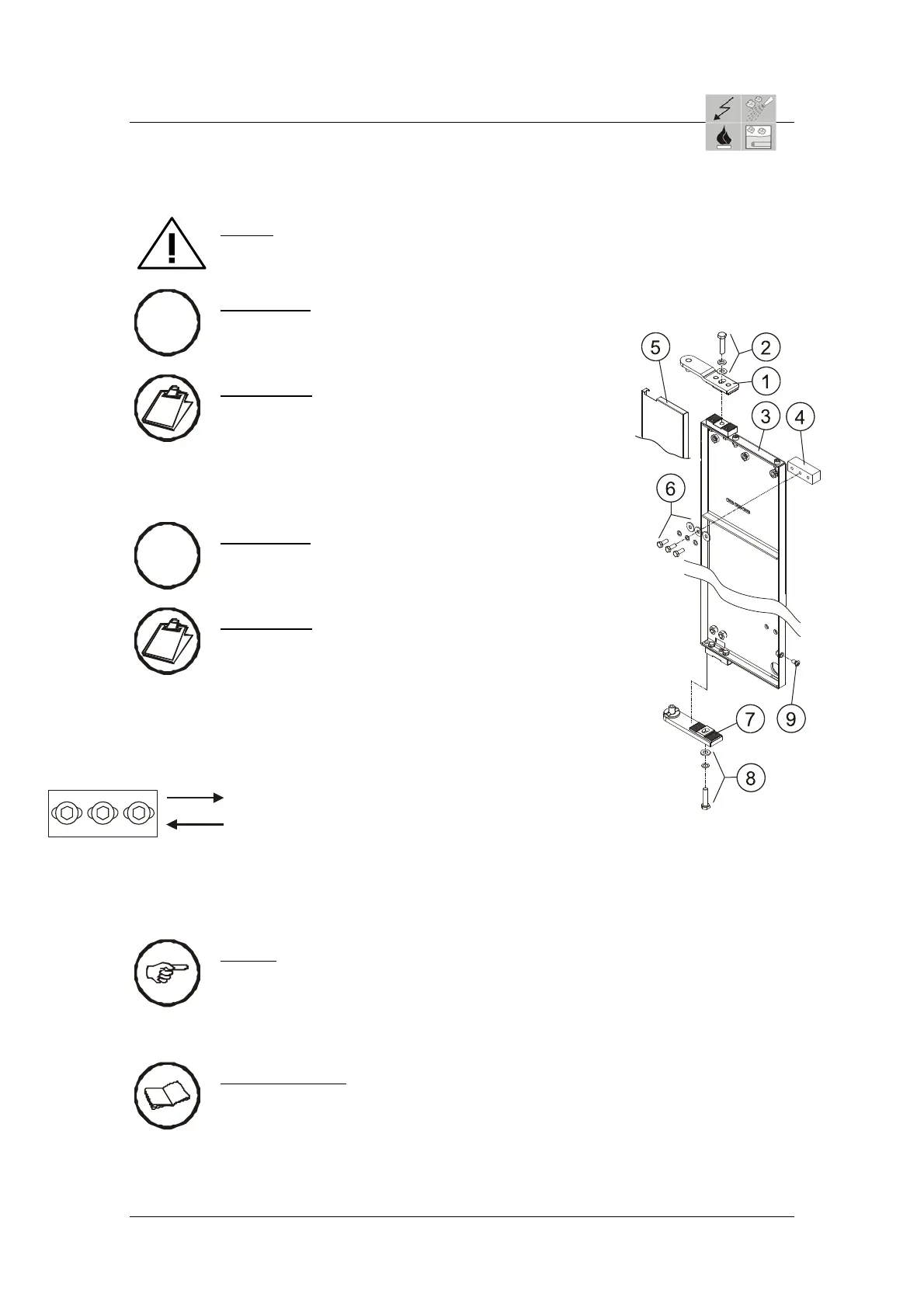

 Loosen the screws 2 + 8 on the upper 1 and
lower 7 hinge plate, enough so that the hinge plate
can slide straight.
 Straighten the door.
 Tighten the screws 2 + 8 again.
Information:
 Door doesn't seal, or
 Door is difficult to close.
Instructions:
 Remove the covering 5 of the slot panel 3.
Thereby, removing the two MLF screws 9 and
hang the covering upwards and out.
 Loosen the three hexagon socket screws 6.
 By sliding the front stop plate 4 you can adjust the door
(Distance door – unit: 8 mm).
Door is difficult to close  slide to the back
Door doesn't seal  slide to front
 Tighten the hexagon socket screw 6 again.
 Assemble and screw on the covering 5 of the
slot panel 3 again.
Advice:
 The slot panel must be parallel to the front unit edges..
 If after adjustment the door still releases steam, a new set of door gaskets,
Part No.: 3417275 can be installed. When this set is used, the door inner
surface is pressed against the door gasket with an additional washer.
Cross reference:
Service Handbook 6.15 Sealing the Corners on the Door Gasket Frame
i
i
AS/11-2011 6_30e_Disappearing Door Replacement_Adjustment_b
