Service Handbook OEB/OES/OGB/OGS
AS/11-2011 6_30e_Disappearing Door Replacement_Adjustment_b
Instructions - Removing the rollers 8:
Loosen the hexagon socket screw 9 on the defective rollers 8 with a hexagon
wrench (hold secure with a face spanner).
Remove the roller 8.
Instructions - Replacing the rollers:
Set the new roller 8 on.
Screw in the roller 8 with the hexagon socket screw 9 and locking washer
securely, secure the screw with screw locking lacquer (i.e. Loctite ) -
tightening torque 45 Nm.
Place the slot panel 4 from the front onto the guide rails 10 and slide it lightly
tilted onto the rails.
Place the sliding block 7 into the upper guide rail and screw it ( 6) to the slot
panel 4. Secure them with screw locking lacquer.
Assemble the stop buffer 5.
Assemble the door 1.

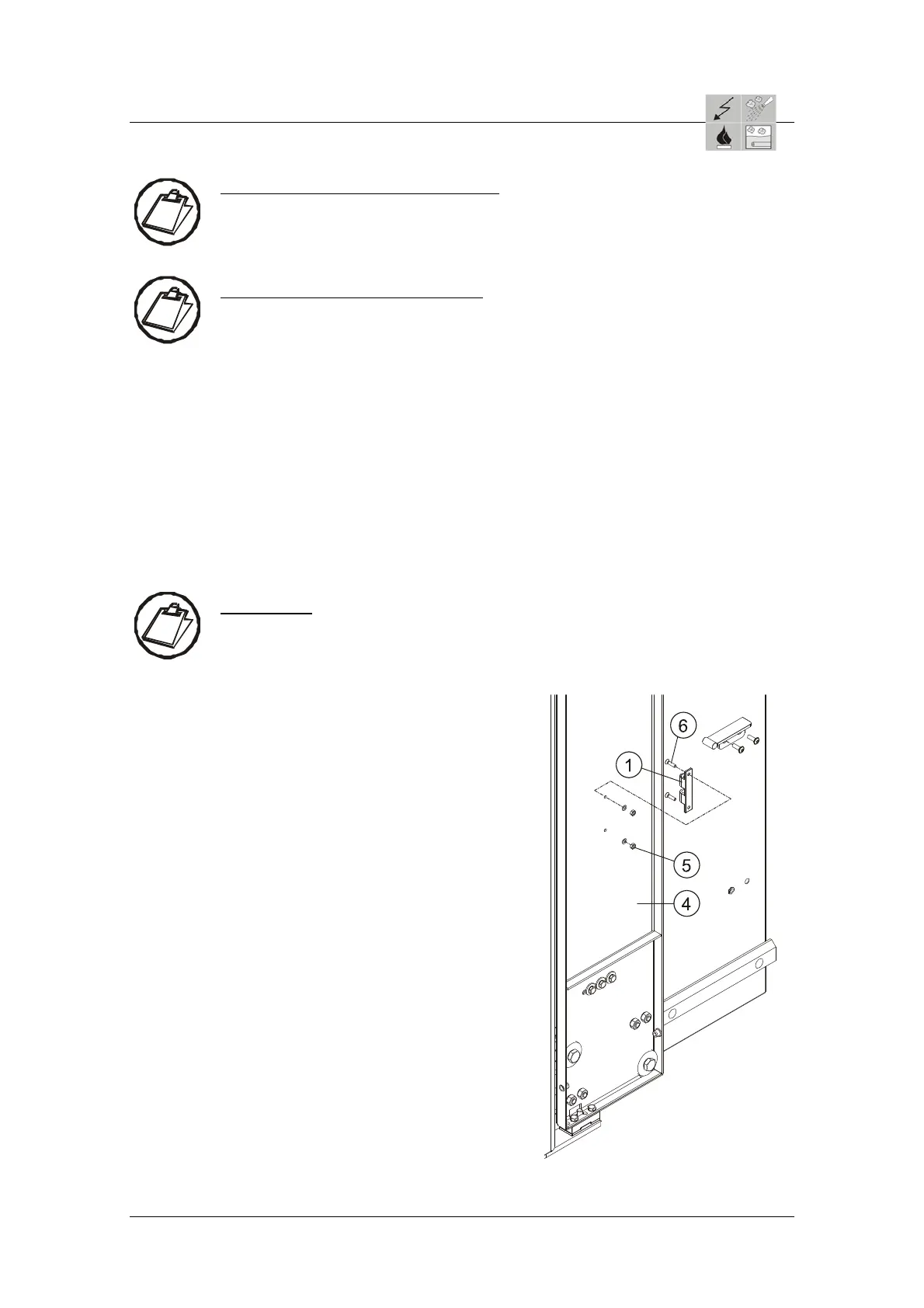

6.30.3 Replacing the screen for the slot panel (Marine version)
Instructions:
Remove the covering (see
Pos. 2 + 3 in picture on the previous page) of the slot panel 4.
Unscrew the nut 5 with the washer
above and below the ball catch 1
and remove the ball catch.
Screw on the new ball catch
1 with the 2 screws 6 and nuts 5
and washers.
Assemble the covering for the slot
panel
4 again.
Page 4 / 4
