CoolPlug CooLinkHUB HVAC Bridge Connecting CoolPlug PN/SA/TO
QIG Version 2.2 10 CoolPlug CooLinkHUB
5. Connecting CoolPlug PN/SA/TO
5.1 Panasonic
|
Sanyo
|
Toshiba
1

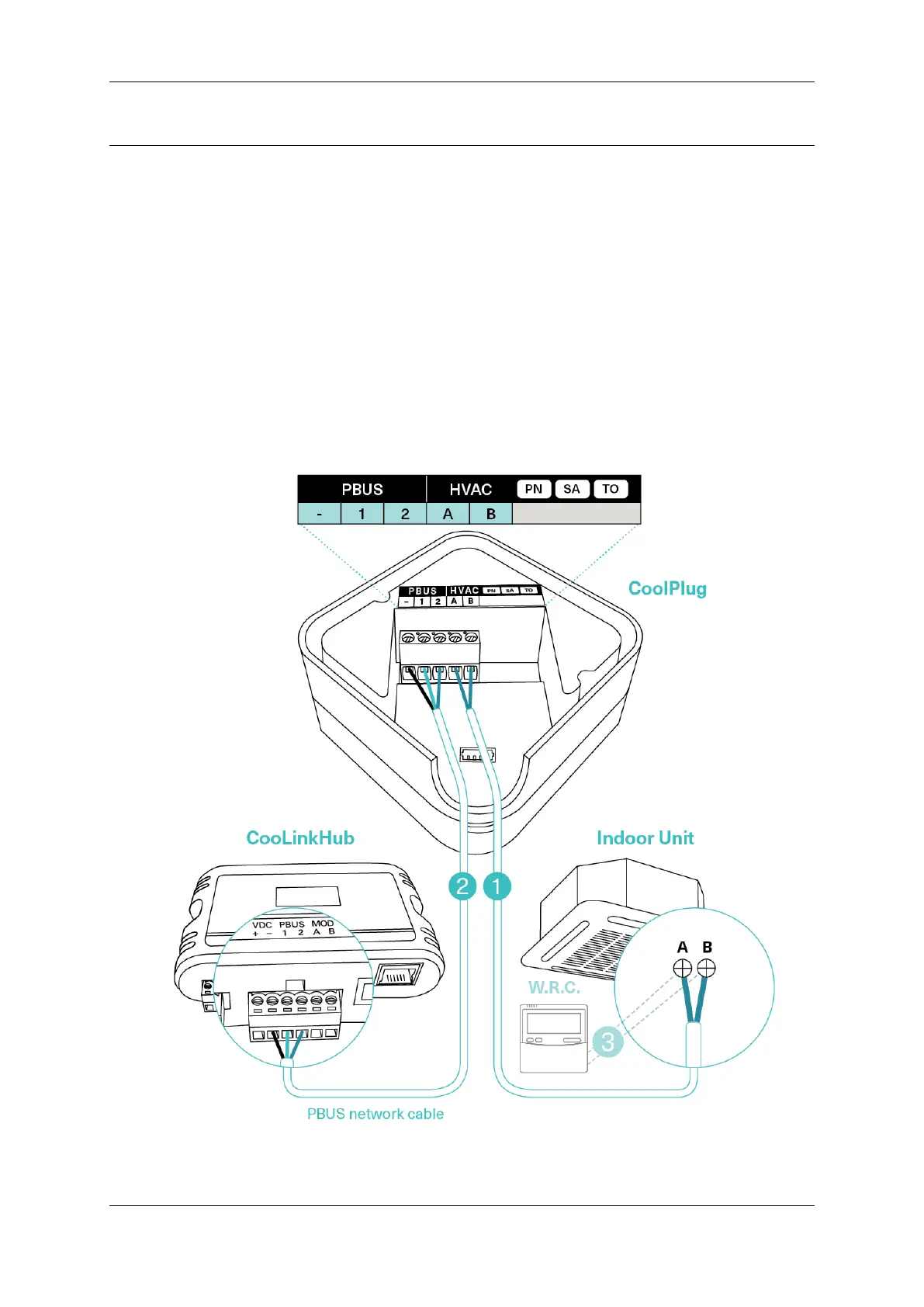

Connecting the CoolPlug HVAC Line to the PN/SA/TO Indoor Unit
Connect the CoolPlug’s [A], [B] terminals to [A], [B] terminals on indoor unit.
* To connect to Panasonic indoor unit, use R1 R2 terminals.
2
Connecting the CoolPlug to the CooLinkHUB
Connect the signal wires of the PBUS cable coming from the [VDC-], [1] and [2]
terminals on the CooLinkHUB to the corresponding [-], [1] and [2] terminals on the
CoolPlug.
3 Optional: Connect the Wired Remote Controller (W.R.C.).
To Next Page
