CoolPlug CooLinkHUB HVAC Bridge Connecting CoolPlug ME (Mitsubishi Electric)
QIG Version 2.2 14 CoolPlug CooLinkHUB
7.
Connecting CoolPlug ME (Mitsubishi Electric)
7.1 Option 1 – CN-105
1

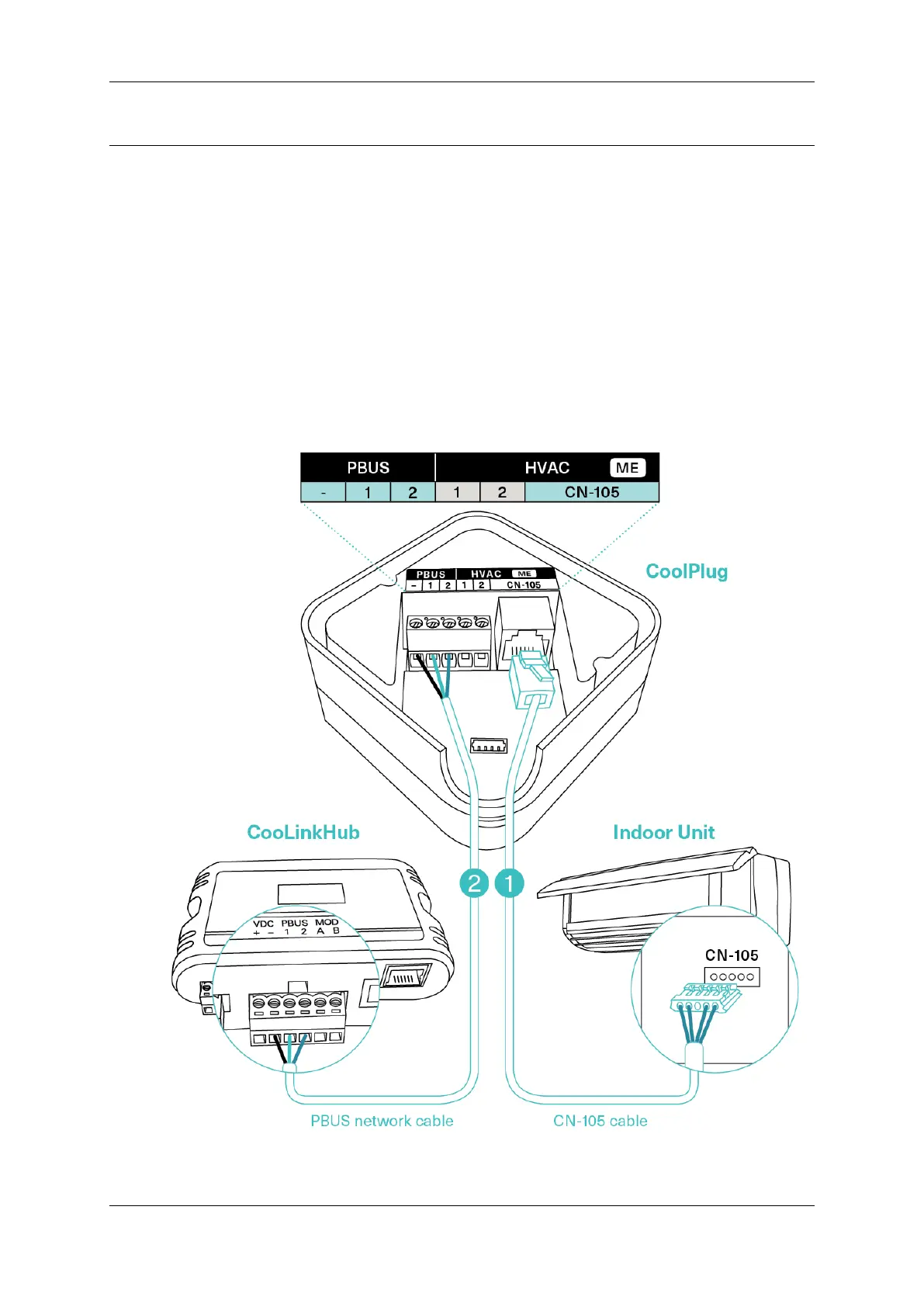

Connecting the CoolPlug HVAC Line to the Mitsubishi Indoor Unit
Connect the ME CN-105 cable, supplied with the CoolPlug, between the CoolPlug RJ-
11 connector and the CN-105 port on the indoor unit’s Control Board. Consult the HVAC
manufacturer’s installation manual for the location of the CN-105 port on the Control
Board.
2
Connectin
g the CoolPlug to the CooLinkHUB
Connect the signal wires of the PBUS cable, using the [VDC-], [1] and [2] terminals on
the CooLinkHUB, to the corresponding [-], [1] and [2] terminals on the CoolPlug.
To Next Page
