Cool Automation CoolPLug User Manual

CoolPlug CooLinkHUB HVAC Bridge Connecting CoolPlug FJ
QIG Version 2.2 11 CoolPlug CooLinkHUB

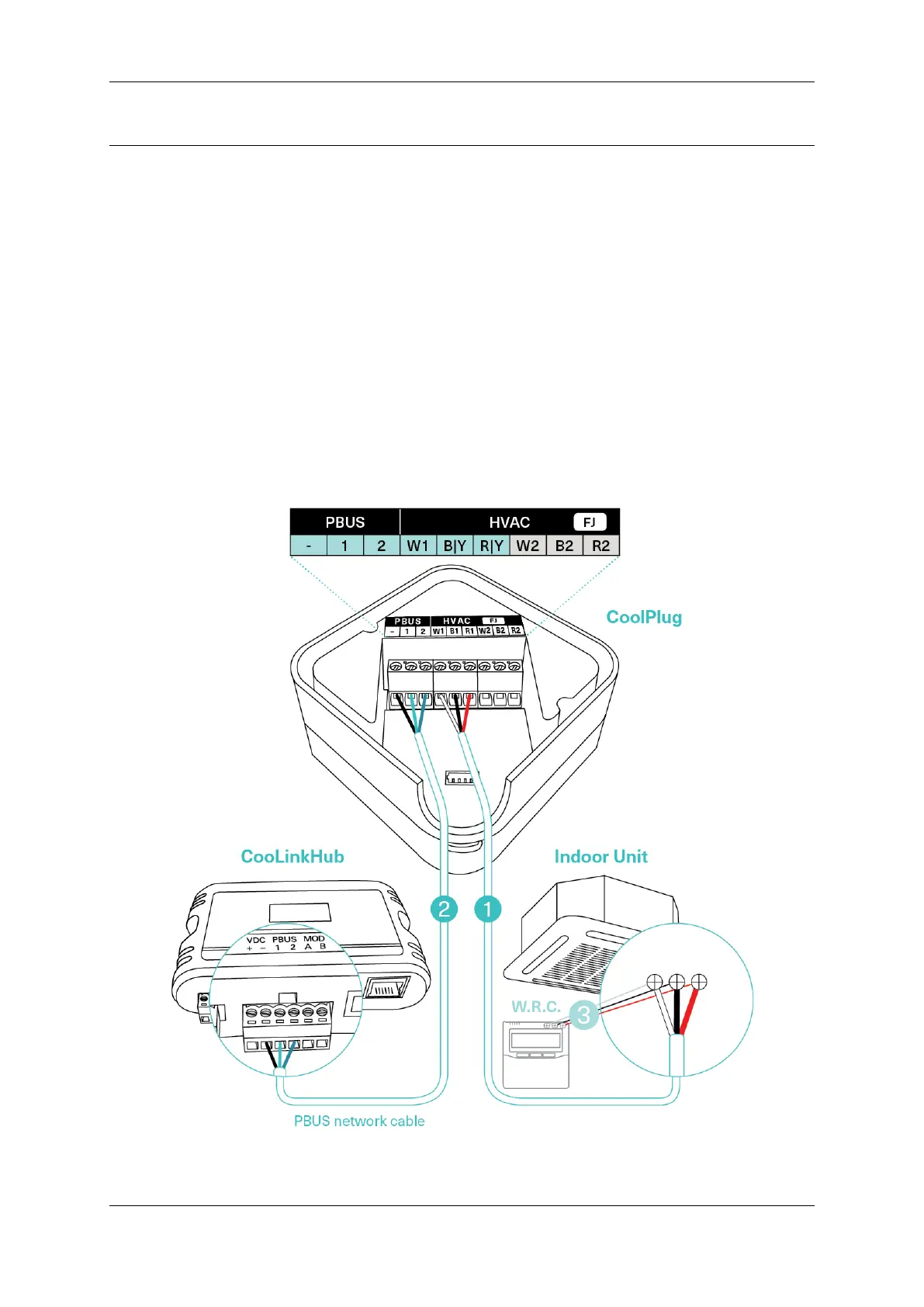

6. Connecting CoolPlug FJ
6.1 FJ (Fujitsu/General) - Option 1*
1 Connecting the CoolPlug HVAC Line to the Fujitsu Indoor Unit
Connect the CoolPlug’s [W1], [B1], [R1] terminals to corresponding terminals on the
indoor unit, keeping the wire colors consistency.
2 Connecting the CoolPlug to the CooLinkHUB
Connect the signal wires of the PBUS cable, using the [VDC-], [1] and [2] terminals on
the CooLinkHUB, to the corresponding [-], [1] and [2] terminals on the CoolPlug.
3 Optional: Connect the Wired Remote Controller (W.R.C.)
* For indoors that work with APG000 or compatible W.R.C. models.
* Reset power, once the CoolPlug is installed
