CoolPlug CooLinkHUB HVAC Bridge Connecting CoolPlug Gree (GRTS)
QIG Version 2.2 19 CoolPlug CooLinkHUB
11.2
Gree Option 2
1

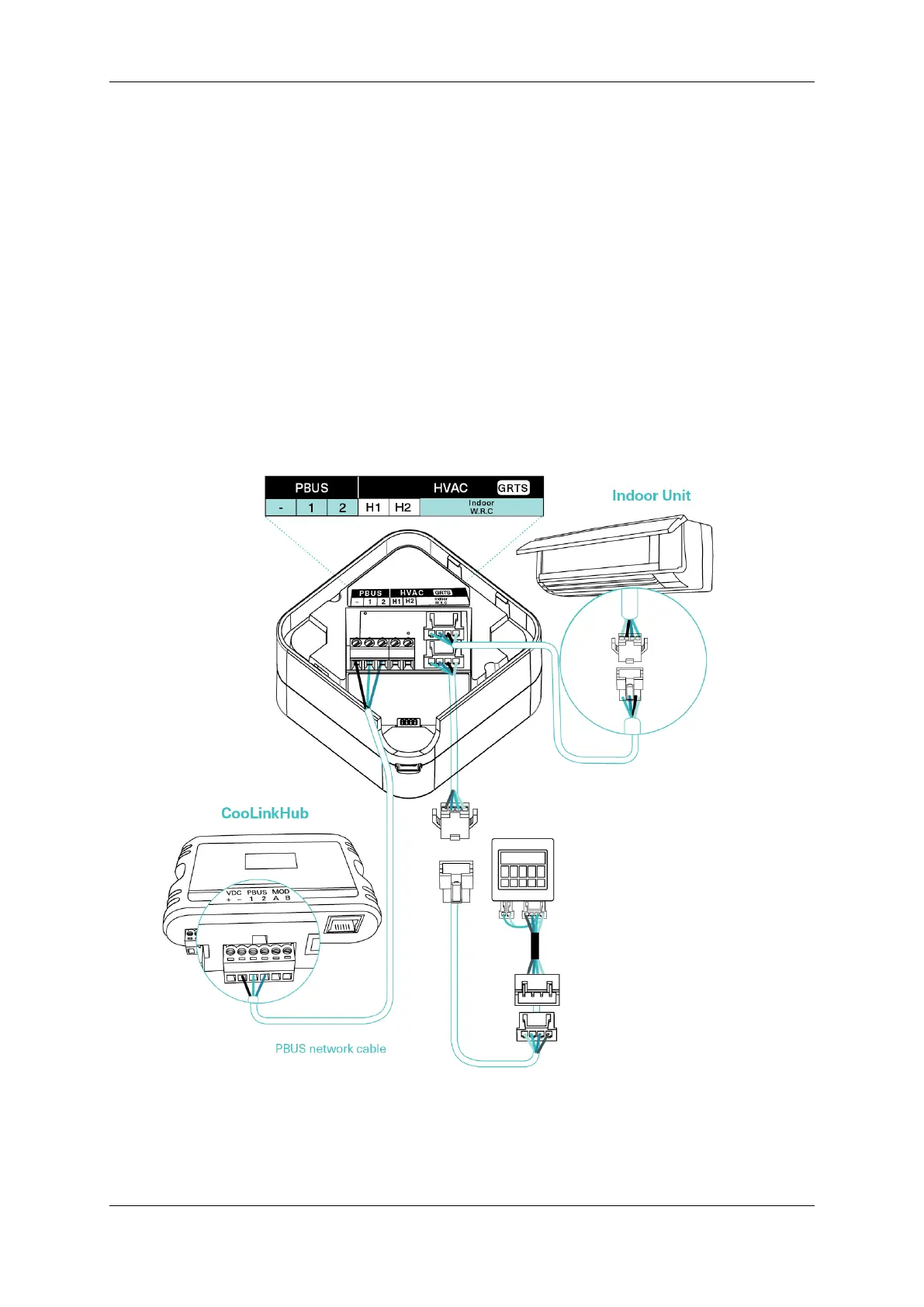

Connecting the CoolPlug HVAC line to the Gree Indoor Unit
Connect the cable supplied with the CoolPlug, between the CoolPlug Indoor connector
and the connector on the indoor unit’s cable. Consult HVAC manufacturer’s Installation
manual for location of indoor unit cable.
2
Connecting the CoolPlug to the W.R.C.
Connect the short cable (supplied with the CoolPlug) between the 2 W.R.C. ports.
Connect the W.R.C. cable to the connector of the adapter cable supplied with the
CoolPlug. Then connect the CoolPlug adapter to the CoolPlug W.R.C. port.
3
Connecting the CoolPlug to the CooLinkHUB
Connect the signal wires of the PBUS network cable between CoolPlug terminals [-], [1]
and [2], and CooLinkHUB terminals [VDC-], [1] and [2], respectively.
To Next Page
