Cool Automation CoolPLug User Manual

CoolPlug CooLinkHUB HVAC Bridge Connecting CoolPlug DK (Daikin)
QIG Version 2.2 8 CoolPlug CooLinkHUB
3. Connecting CoolPlug DK (Daikin)
3.1 DK (Daikin) – P1 P2

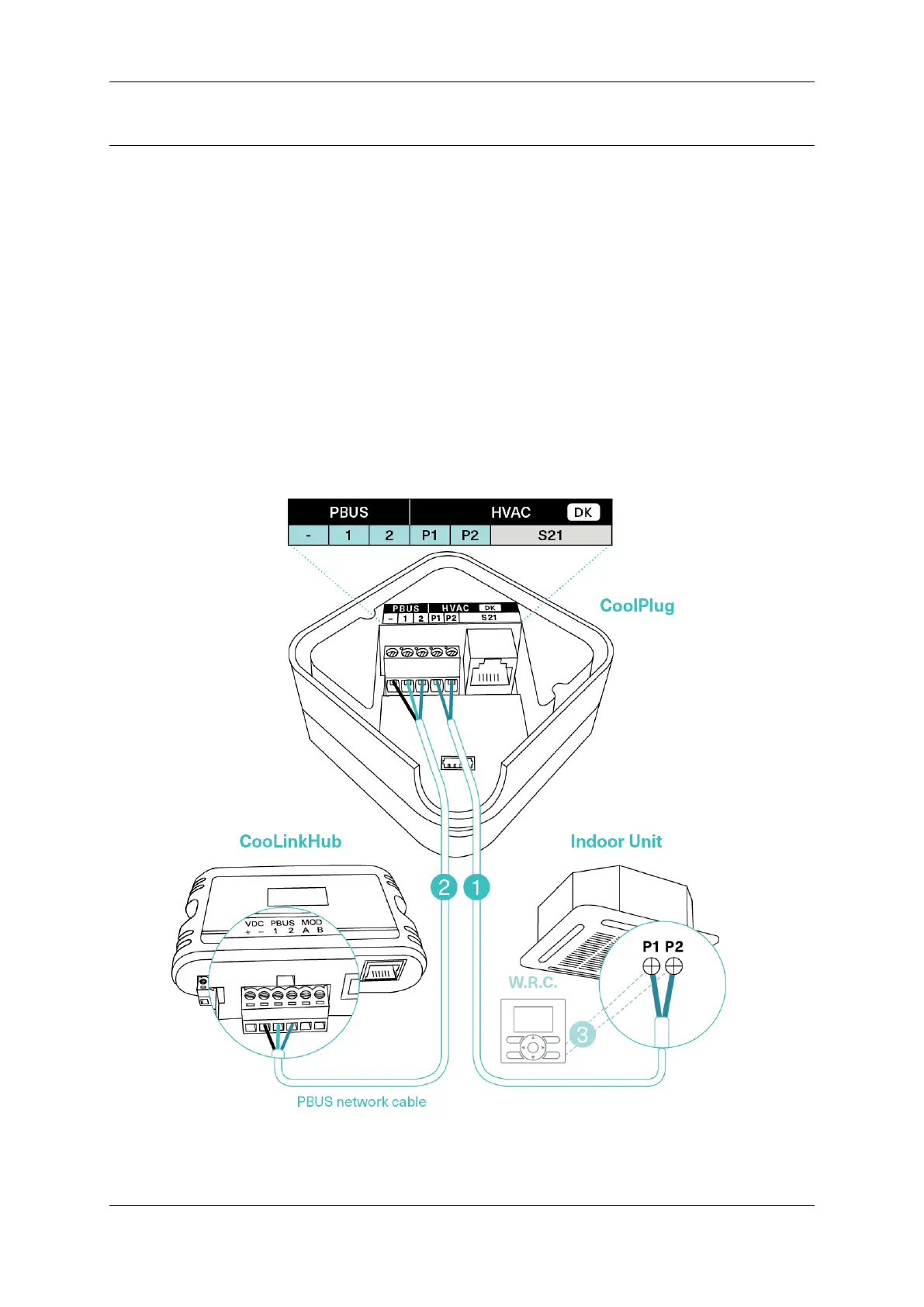

1 Connecting the CoolPlug to the Daikin unit
Connect the CoolPlug’s [P1], [P2] terminals to the [P1], [P2] terminals on the indoor
unit.*
2 Connecting the CoolPlug to the CooLinkHUB
Connect the signal wires of the PBUS cable coming from the [VDC-], [1] and [2]
terminals on the CooLinkHUB to the corresponding [-], [1] and [2] terminals on the
CoolPlug, respectively.
Optional: Connect the Wired Remote Controller (W.R.C.) in parallel mode.
* No Polarity requirements

Cool Automation CoolPLug Specifications

General

Brand	Cool Automation
Model	CoolPLug
Category	Controller
Language	English
