CoolPlug CooLinkHUB HVAC Bridge Connecting CoolPlug DKS
QIG Version 2.2 9 CoolPlug CooLinkHUB
4.
Connecting CoolPlug DKS
4.1
DK (Daikin) – Siesta Series
1

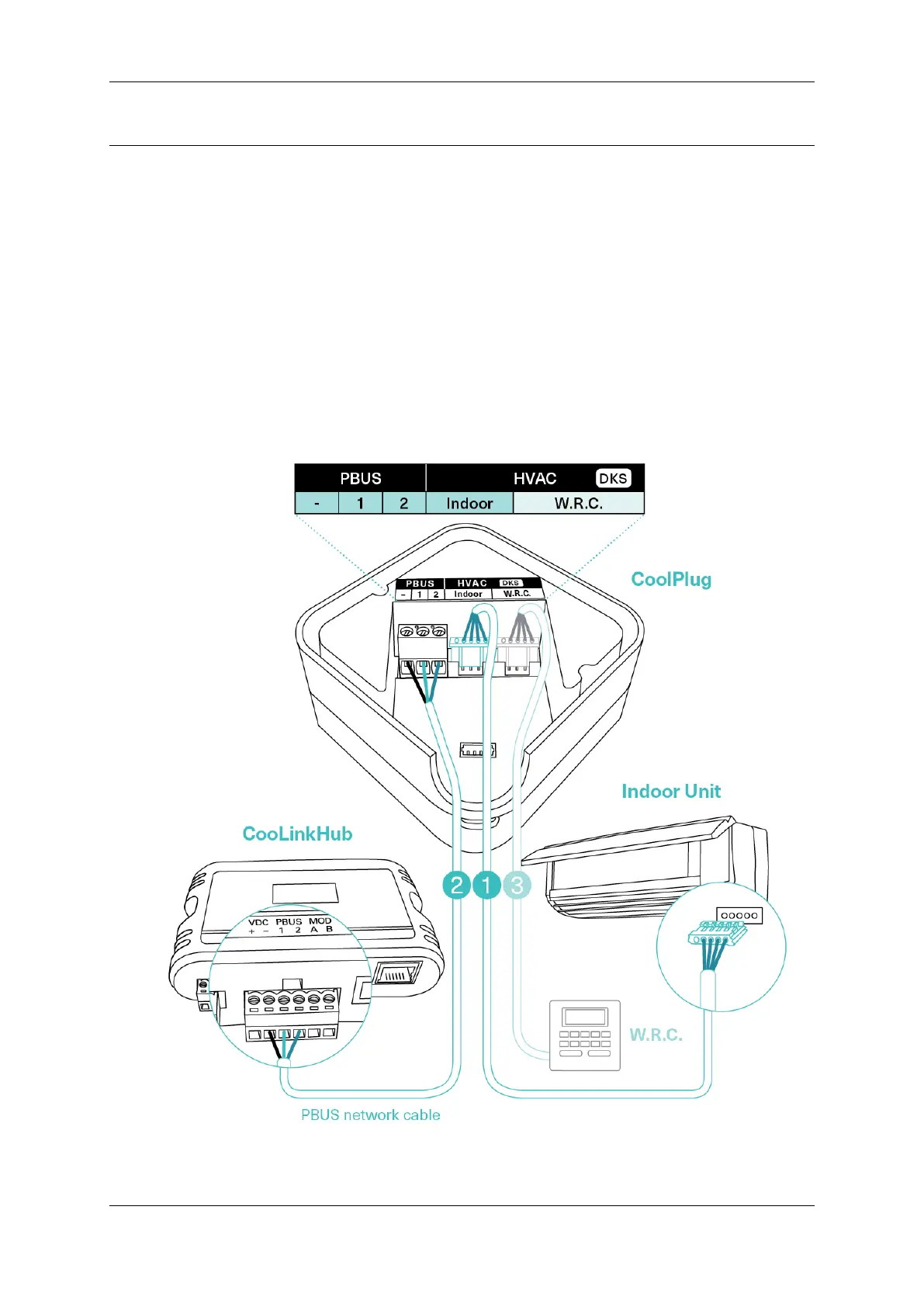

Connecting the CoolPlug HVAC Line to the Daikin Siesta Indoor Unit
Connect the cable, supplied with the CoolPlug, to the port labeled “Indoor” on CoolPlug
and the corresponding connector on the indoor unit.
2
Connecting the CoolPlug to the CooLinkHUB
Connect the signal wires of the PBUS cable, using [VDC-], [1] and [2] terminals on the
CooLinkHUB, to the corresponding [-], [1] and [2] terminals on the CoolPlug.
3
Optional: Connect the wired remote to the ‘W.R.C’ socket on the CoolPlug. The
cable is supplied with the W.R.C.
