Coolerado M50C - Appendix 4 - Coolerado Thermostat Wiring Picture

Coolerado Installation
Page 29 of 63

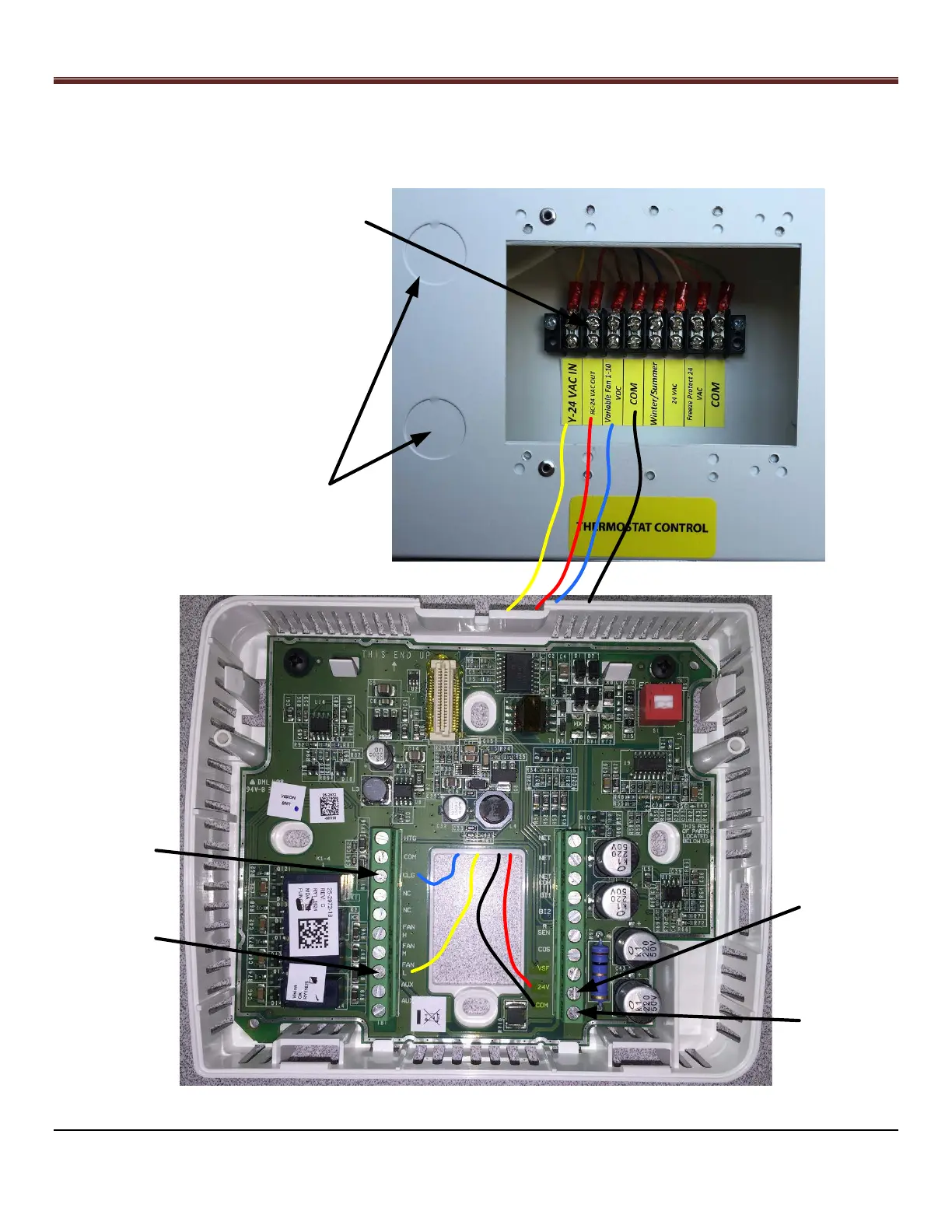

Appendix 4: Coolerado Thermostat Wiring
Johnson Controls
TEC3620
Thermostat
Feed Control Wires
Through Knockout
FAN L
To
Y-24 AVC IN
24V
To
RC-24 VAC
OUT
COM
To
COM
CLG
To
Variable Fan
1-10 VDC
Note: The C60 terminal strip
is located to the left of the
water control board.
Coolerado Low
Voltage Terminal
Strip
