Base Sounder - MAS850 + MASC
Supply Voltage 17 ~ 32 V dc
Cable Size / type 0.5 ~ 2.5mm/ FIRETUF, FP200 or MICC
Standby current < 320 uA
Operating temperature -10 to +55 degrees C (95%RH)
Sound output @ +/-3dB (set by panel) Low volume: 84 dB @ <4 mA
Medium volume: 92 dB @ <8 mA
High volume: 95 dB @ <12 mA
Tones (set by panel) Continuous 910 Hz
Pulsed: 910 Hz / 0 Hz pulse 1 Hz
Two tone: 610 Hz / 910 Hz @ 1 Hz cycle
Slow whoop: 500-1200 Hz in 3.5 seconds / 0.5secs gap
Section 5 - Appendix
+
+
-
-
+
+
-
-

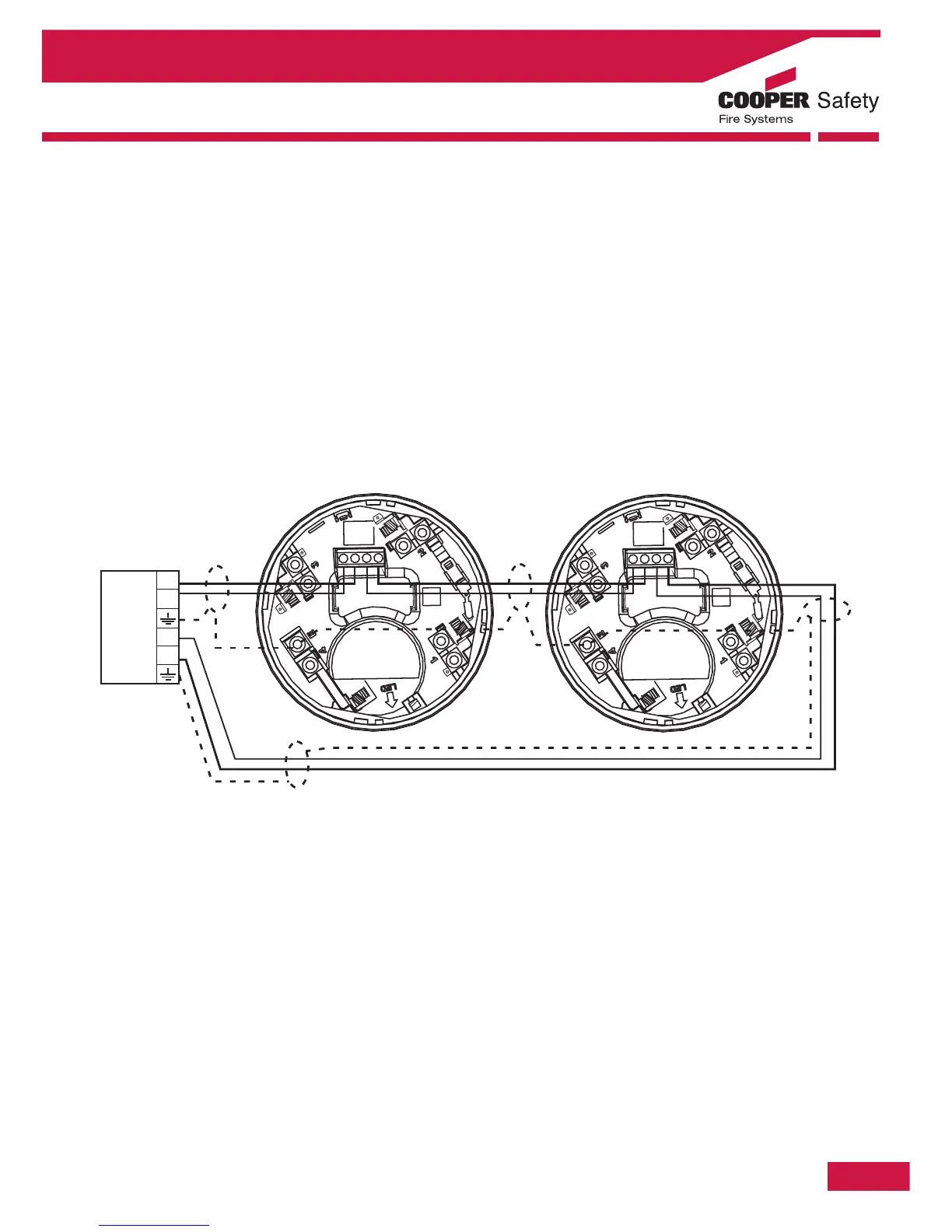

Analogue addressable
fire alarm panel
Loop start
Loop finish
S+
S-
F-
F+
