1-12
VR-32 Regulator and CL-2A Control

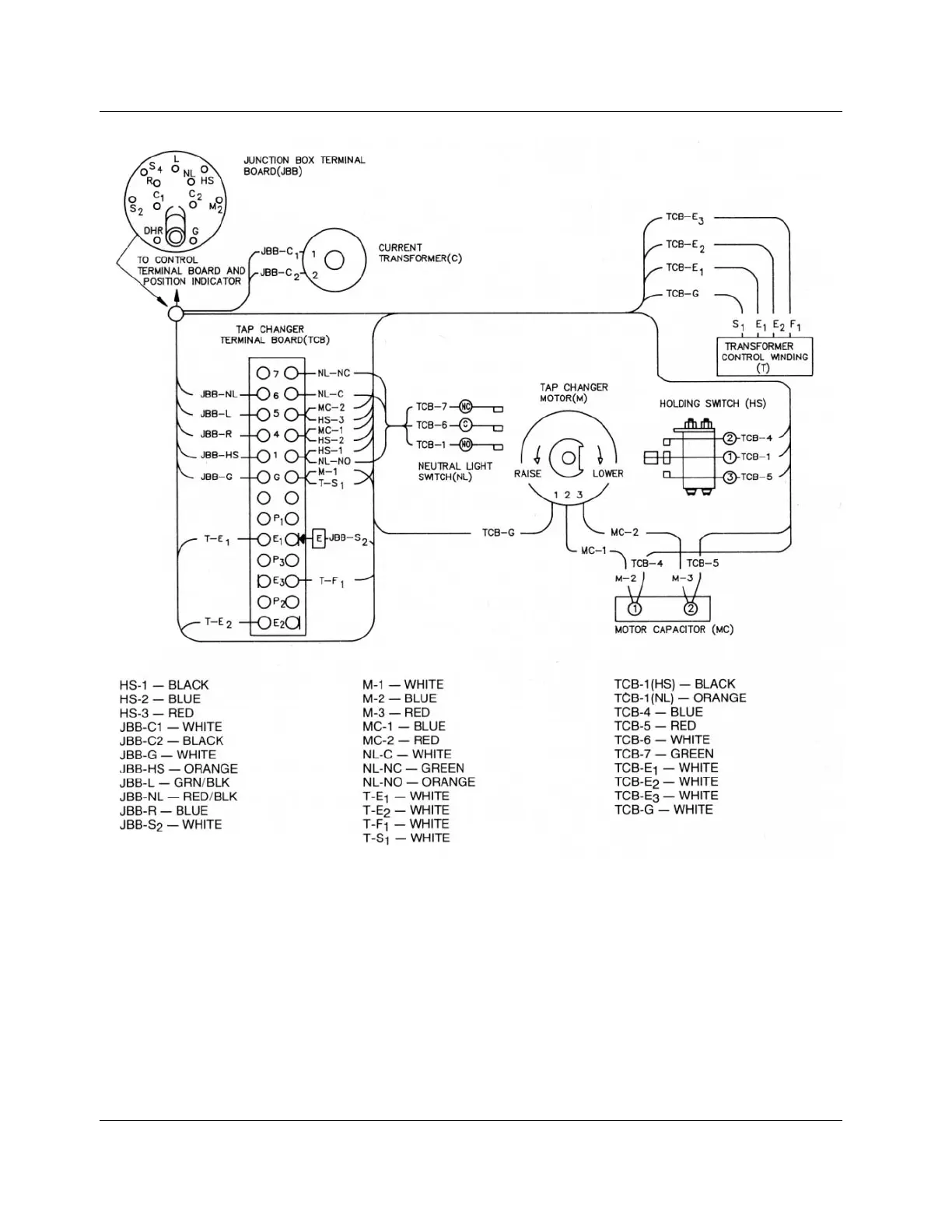

Figure 1-13.
Internal wiring of spring-drive regulator with series winding located on the source side.
