4.3 Installation Instructions
Once the optimal position to install the sensor has been chosen, it is recommended to install the sensor (identifiable on
the device by the black sensor housing) in a vertical position, with the sensitive element (black part) facing downwards.
The sensor can now be mounted on the wall, as follows:

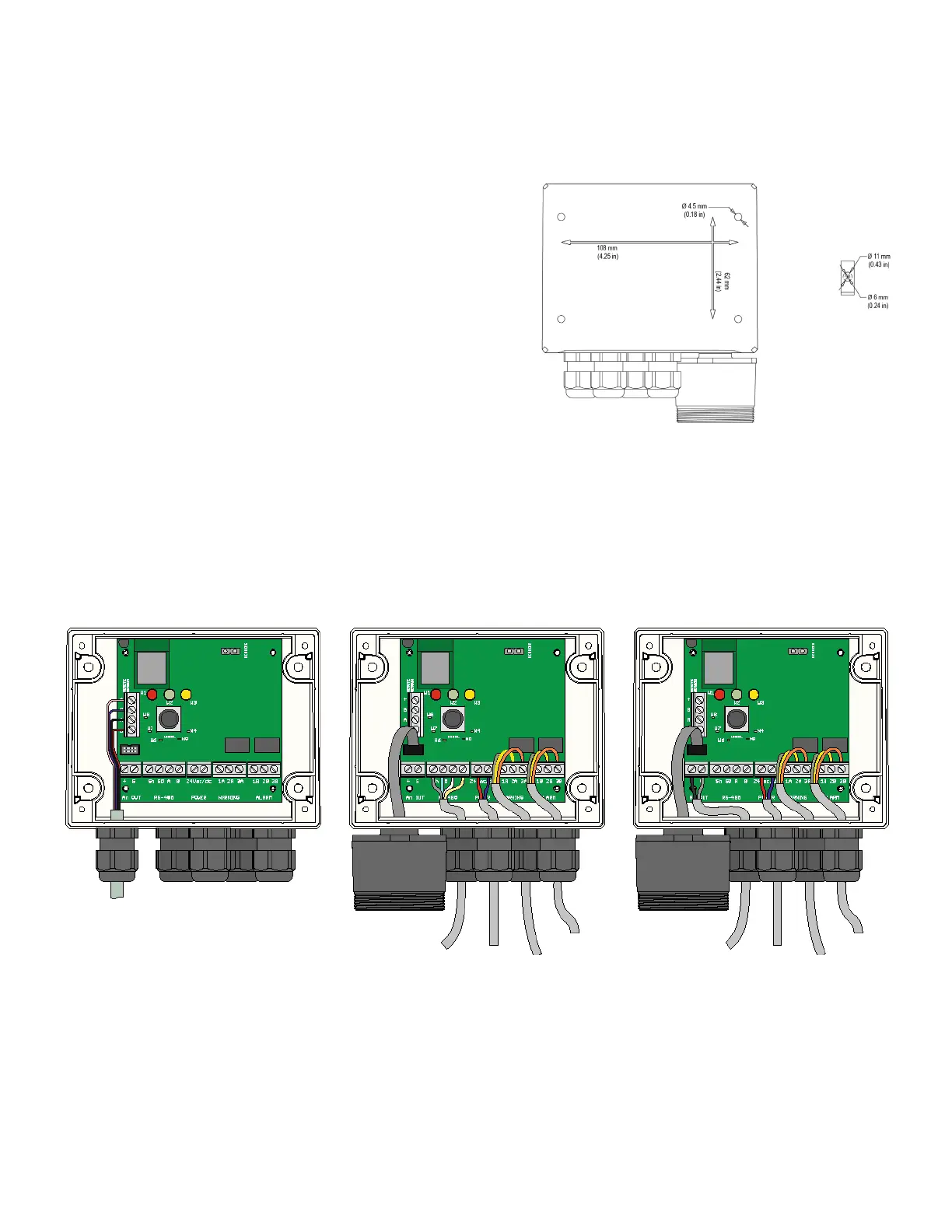

1. Drill the holes in the wall using the measures on the bottom side of the detector (shown in the picture).
2. Fix the device using four screws, chosen according to the type
of installation and the type of wall, maximum diameter 4 mm,
minimum length 15 mm and torque 2.5 Nm.
3. Fix the remote sensor using one screw, chosen according to the
type of installation and the type of wall, maximum diameter 4 mm,
minimum length 15 mm and torque 2.5 Nm.
4. Open the cover of the device, fit the cable glands and make the
required electrical connections. The plug-in terminals can be
removed from the device to facilitate wiring.
5. Power ON the device and complete the settings using the rotary
switch, as described in the following paragraphs, or using the app,
as described below or through the Modbus connection.
6. Use the cable glands provided to pass through and connect the
cables to the terminals, as shown in the figure below and in the
Connection Table on page 12. The terminals can be removed to simplify wiring.
7. Close the cover.
8. Cord range for M16 cable gland 5 - 10 mm, for M22 cable gland 10 - 14 mm.
9. Use UL listed approved cable, min. 122°F (50°C), suitable for electrical rating in application.
10. Tighten the cable glands with a torque of 2.5 Nm.
11. Close the cover.
