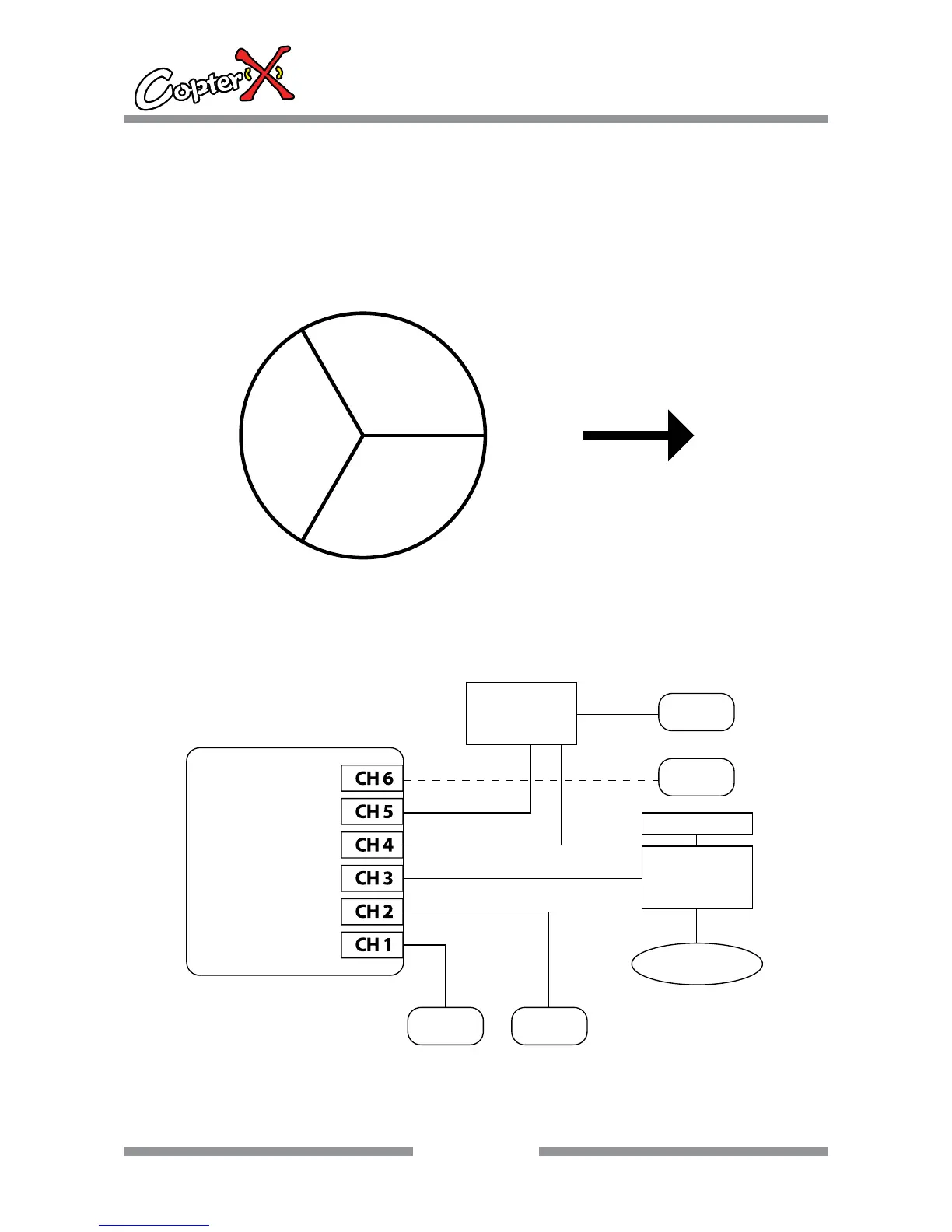

CopterX CX-CT6C - Heli. Connection Diagram (3 Servos CCPM)

04
CX-CT6C
2.4GHz 6 Channel FHSS Technology
Digital Proportional Radio System
Servo 3
Servo 1
Servo 4
Gyro
Receiver
RUDD.
Remote Gain
Rudder
Electronic
Speed
Controller
Power
PITCH
ELEV.
AILE.
Motor
Servo 2
Switch to “HELIC” position and enter Helicopter mode.
5.1. Heli. Connection Diagram
(3 Servos CCPM)
(AILE.)
(PITCH)
(ELEV.)
Front
