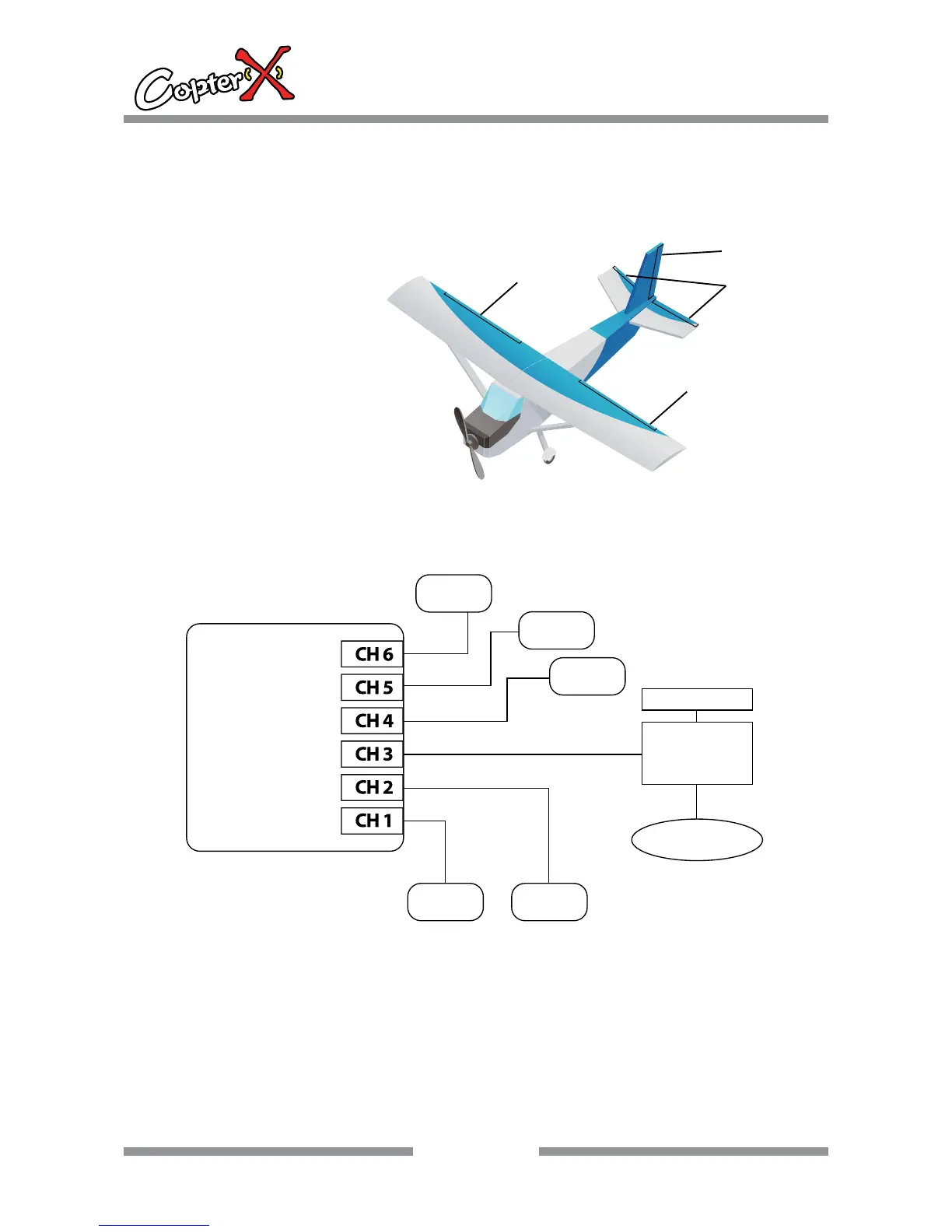

5.2. Airplane Connection Diagram
Switch to “plane” position and enter Airplane mode, not mix function, as for normal planes.
Receiver channel distribution:
CH1: Aileron
CH2: Elevator
CH3: Throttle
CH4: Rudder
CH5: Gear
CH6: Flap
AILE.
AILE.
ELEV.
RUDD.
Servo 3
Servo 1
Servo 4
Servo 5
Receiver
Gear
Flap
Electronic
Speed
Controller
Power
RUDD.
ELEV.
AILE.
Motor
Servo 2
