12

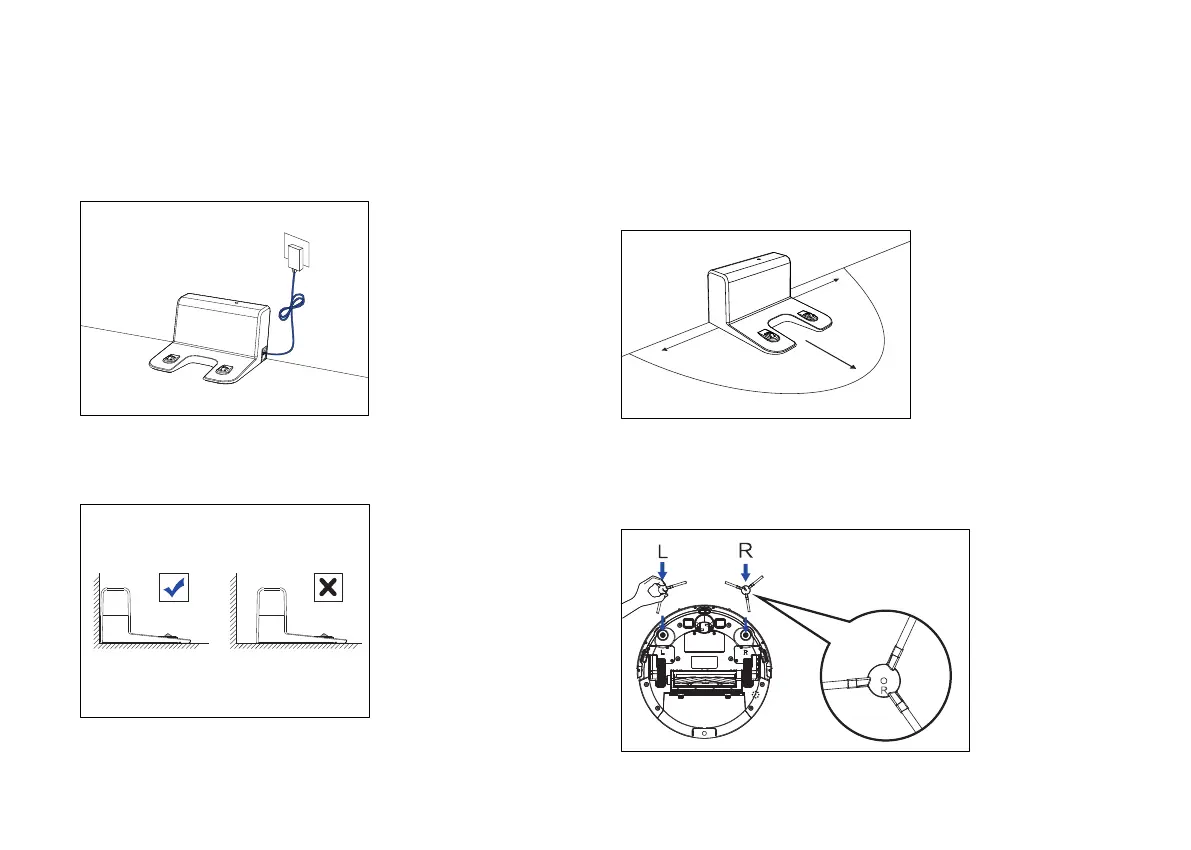

1. Tie up the redundant cable with a cable tie, otherwise,
the cable may be dragged or disconnected the power
supply to the charging dock.
2. Place the Charging Dock on a hard, level surface and
position it against a wall.
3. Charging Dock Position
Ensure a space of at least 0.5m on both the left and right
sides of the charging dock, and a space of at least 1.5m in
front of it.
4. Install Side Brush
Attach Side Brushes to the bottom of Coredy FL022 by
pressing a brush into each slot until it clicks.
Note:
Do not expose the charging dock to sunlight directly.
3.3 Quick Start
0.5m/1.6ft
0.5m/1.6ft
1.5m/5.0ft
