•tothedistancebetweentheoperatingmachineand
the power supply connection point, to ensure that the
voltage drop under full load does not exceed 4% (10%
during start-up) of the rated voltage value specied
on the plate
- The user must:
• tapowerplugincompliancewithcurrentregulations
on the power supply lead;

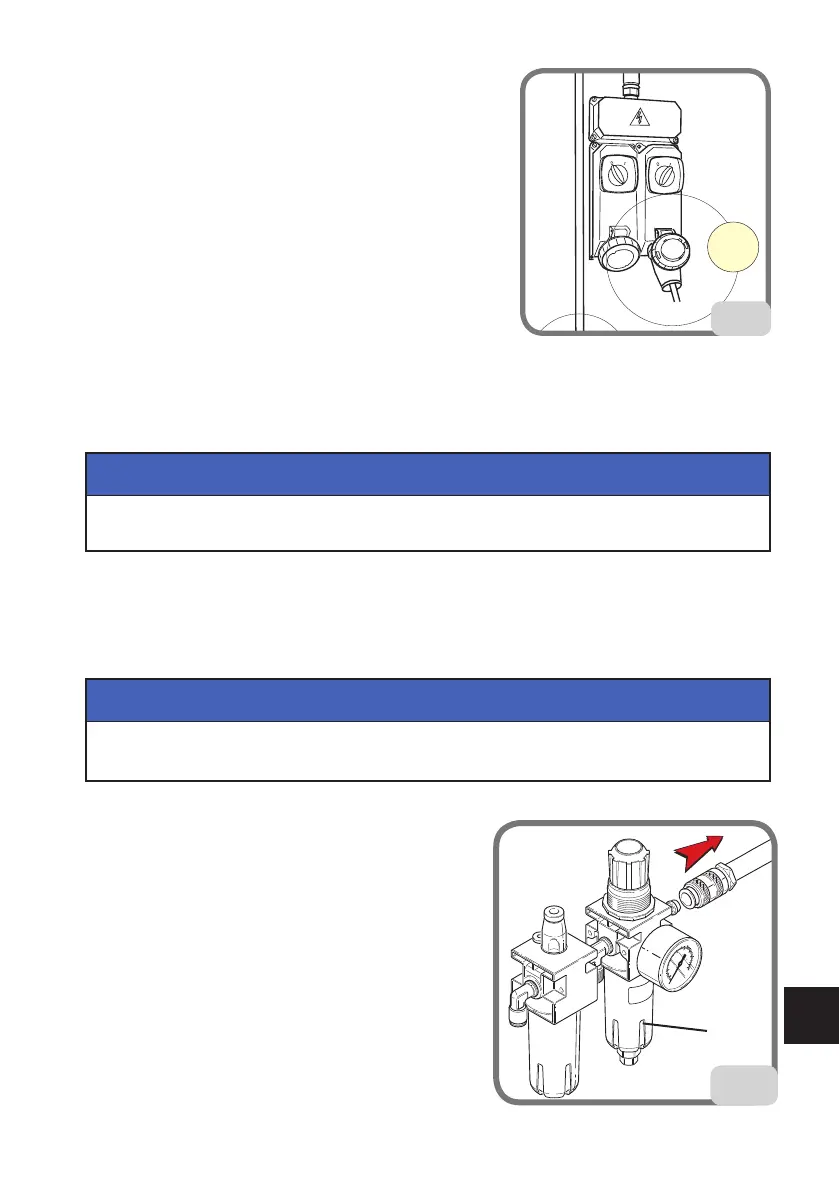

• connectthemachinetoitsownelectricalconnection-A,
Fig. 2 - equipped with a differential automatic circuit
breaker with 30mA sensitivity;
• install protection fuses on the power line that are
suitably sized in accordance with the indications provided on the machine data plate
(Fig.1);
• connect the machine to an industrial socket; the machine must not be connected to
domestic sockets.
A good earth connection is essential for correct operation of the machine.
CAUTION
Make sure that the available pressure and performance of the compressed air system are
compatible with what is necessary for correct machine operation - see the section “Technical
data”. For the correct operation of the machine, the pneumatic supply line must provide a
pressure range from a minimum of 8 bar to a maximum of 16 bar.
For correct equipment operation, the air produced must be suitably treated
(not above 5/4/4 according to standard ISO 8573-1).
CAUTION
Check that the lubrication cup (B, Fig. 2a contains
lubricating oil; top up is necessary. Use SAE20 oil.
The pneumatic supply inlet point, in the workshop
line, must be equipped with a pneumatic supply
shut-off valve, placed upstream the lter/regulator
unit supplied with the machine (B Fig. 2a).
B
2a
