Corghi A 2030 - OVERALL DIMENSIONS (mm)

A 2030 - A 2025 - A 2022 - A 2018 - A 224 A - A 224 Operator’s manual 99
EN
RISK OF INJURY DUE TO CRUSHING. The column tilting and the turntable clamp
opening/closing operation must be performed from working position B (g.9a),
keeping hands away from machine moving parts.
CAUTION

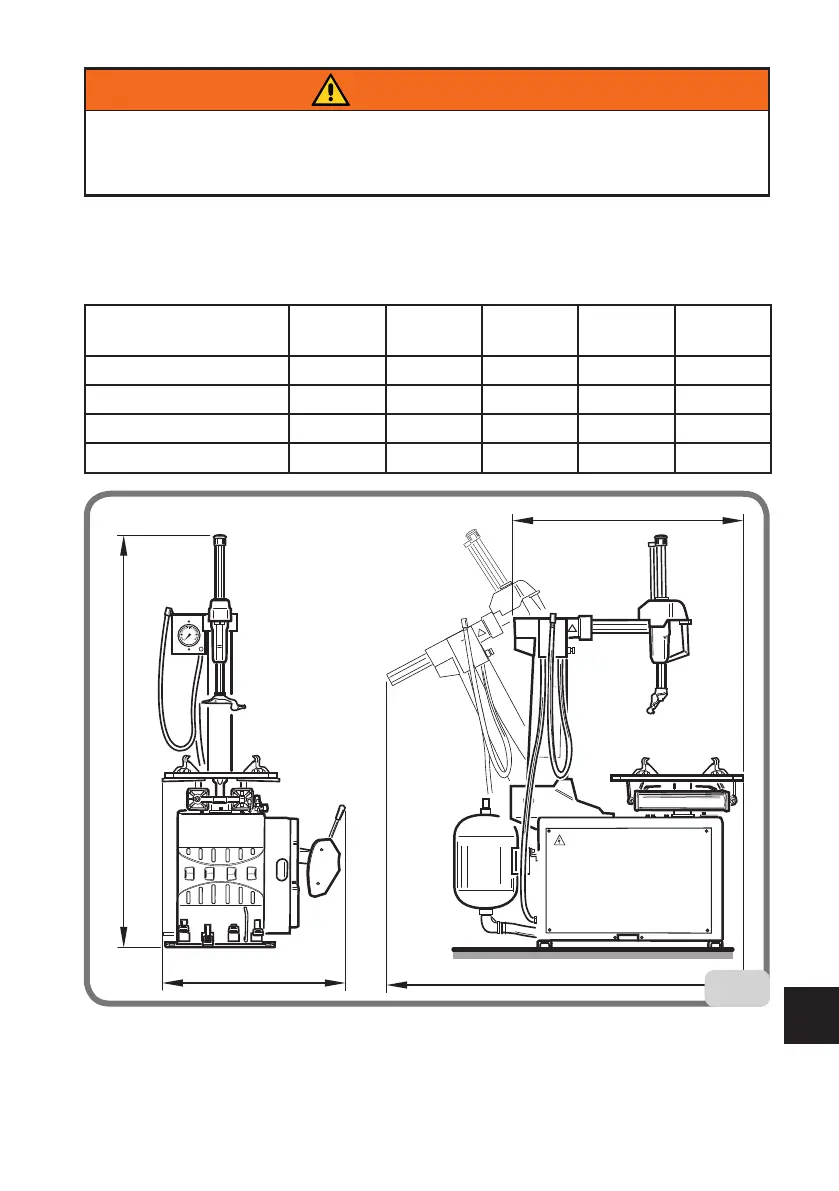

6. OVERALL DIMENSIONS (mm)
A224 -
A224A
A 2018 A 2022 A 2025 A 2030
Maximum length (A) 1150 1150 1030 1090 1240
Minimum width (B1) 1100 1080 1100 1100 1190
Maximum width (B2) 1700 1570 1700 1700 1770
Maximum height (H) 1840 1730 1840 1840 1840
A
B1
B2
H
