5. DESCRIPTION OF THE MACHINE
The machine is an electro-pneumatically operated tyre changer.
It works on all types of whole rims with channel, with weights and dimensions as described
in the TECHNICAL DATA section.
The machine is solidly constructed. It operates with the wheel in a vertical position for
bead breaking and in a horizontal position for mounting and demounting tyres. All machine
movements are controlled by the operator by means of the pedals.
Each machine carries a plate Fig. 9 reporting its identication data and some technical data.
As well as the manufacturer’s details, it indicates:
Mod. - Machine model;
V - Power supply voltage in Volts;
A - Input voltage in Amperes;
kW - Absorbed power in kW;
Hz - Frequency in Hz;
Ph - Number of phases;
bar/psi - Operating pressure in bar and/or psi;
Serial No. - machine serial number;
ISO 9001 - company Quality System Certication;
CE - CE marking.
5.1. OPERATOR POSITION

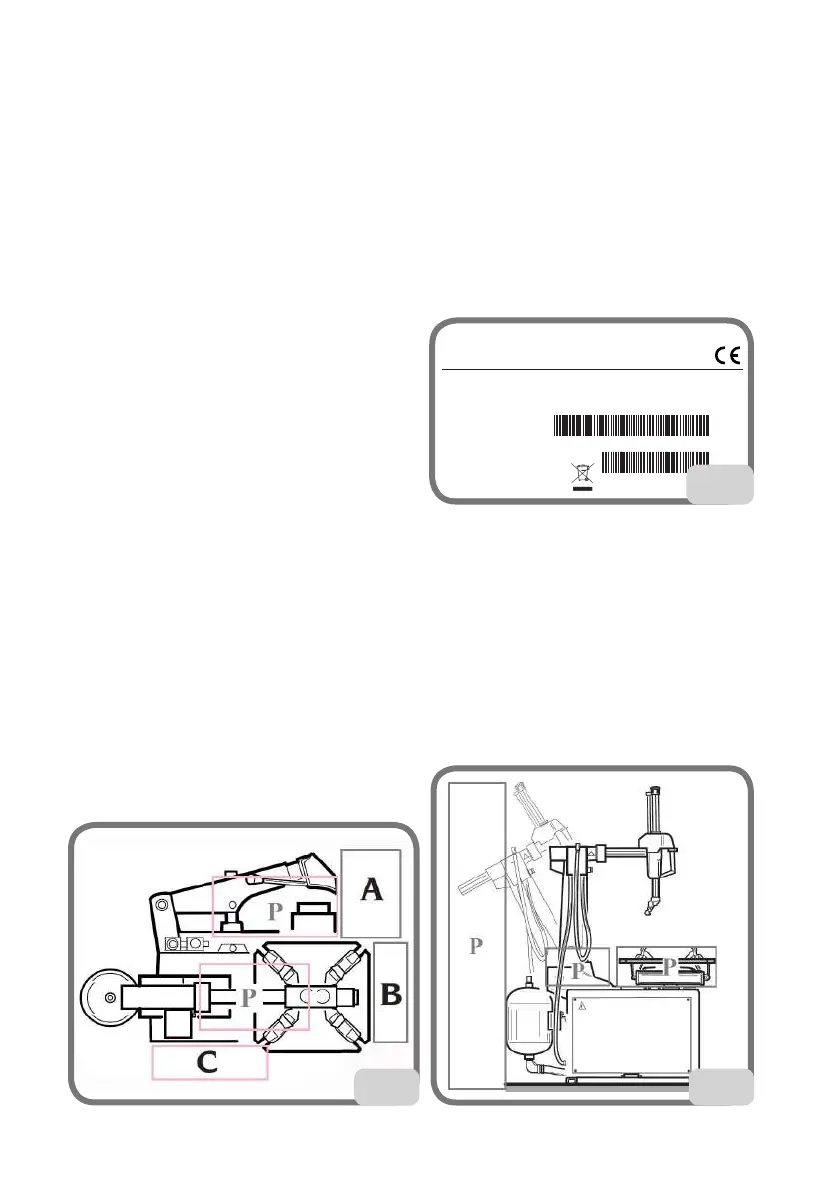

The gures 9a and 9b show the operator’s positions and the relevant hazardous areas (P)
during the various work phases:
A Bead breaking
B Tyre demounting and mounting
C Ination area.
