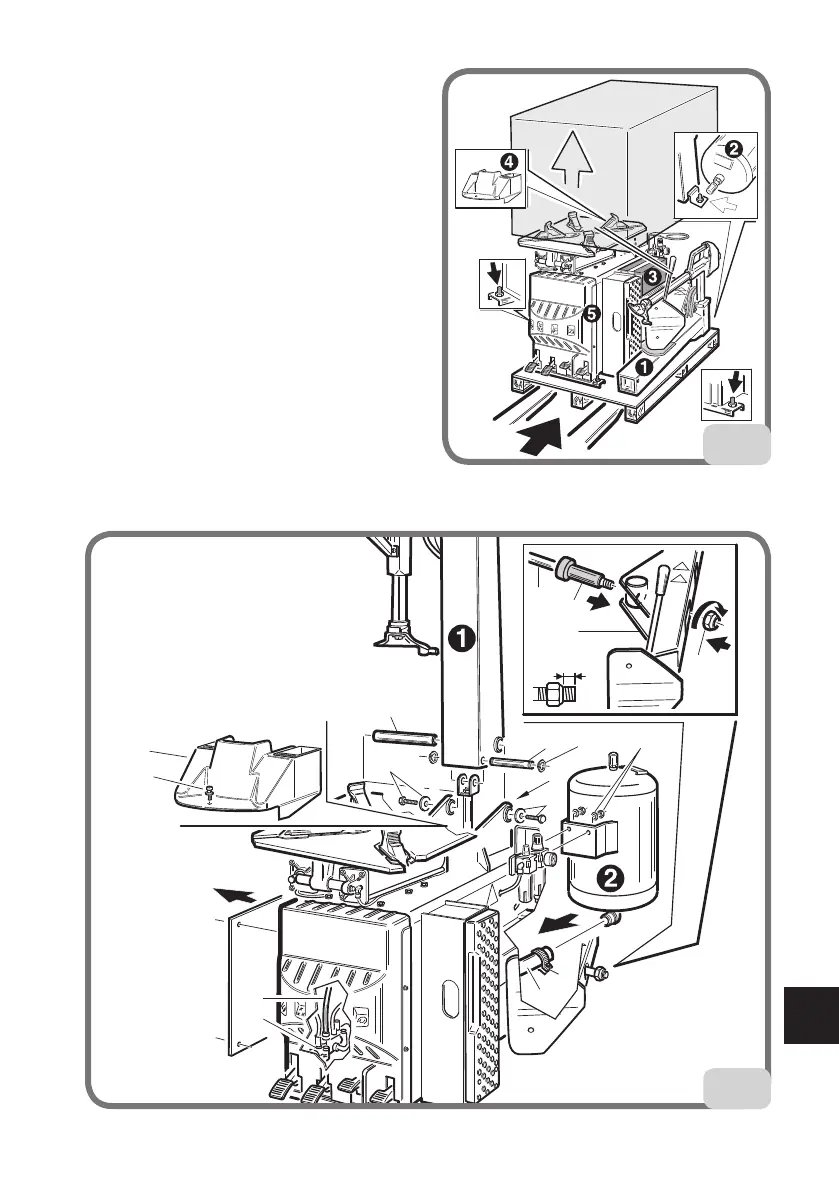

- Insert pin E into hole F and into the U-bolt
F1 of the pole tilting cylinder, and fasten
with circlip M.
- Connect hose G to the intermediate union
connected to the pole lifting valve H.
- Fit the hose connector of tank 2 into hose
Q, fasten the tank 2 to the machine with
nuts and washers R, and tighten the clamp
O onto the hose Q (T.I. version only).
- Open the bead breaking arm Z.
- Fit the spacer drift U on the bead breaking
cylinder pin V, close the bead breaking arm
by letting the just mentioned pin through
the swinging block.
- The nut T is to be screwed on the bead
breaking cylinder pin V only when the
machine will be installed and connected
to the pneumatic supply line. Tighten the
nut T until P is 3-4 mm.
- Fit the pole guard I and lock it with screws and washers L.
- Fit the side cover.
