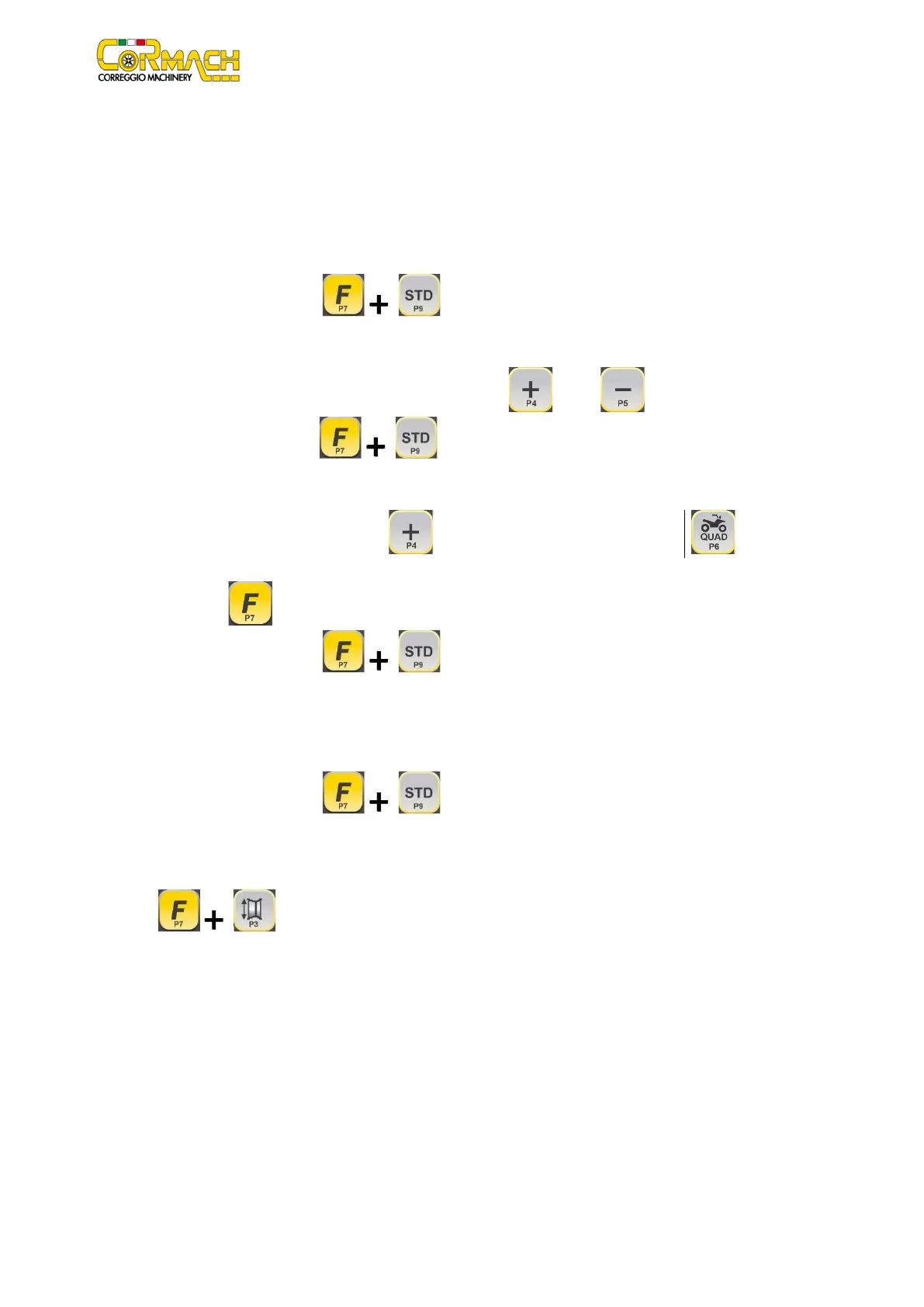

Use and maintenance manual – 10/2016 Rev. 3 Page 26
SIG Pick-up signals test
This program allows you to check the pick-up signal. To run the test, you will need to mount a balanced wheel with a steel rim, 15”
in diameter and 6” in width (or as similar as possible) on the machine. A 50 gram weight must be applied on the external side of the
wheel.
Perform a manual spin, by pushing the motorcycle adaptor counterclockwise. The pick-up signal values are viewed
on the display.
To end the test, manually lock the rotation.
To exit the testing program, press [F+P9] .
dPy Display test
The display testing program will light up all the LEDs and the 7-segment displays in sequence so that the operation thereof can be
checked. To turn on all LEDs and display segments in sequence, press [P4] or [P5] .
To exit the testing program, press [F+P9] .
tAS Keypad test
The keypad testing program is used to check the operation of all the keys on the control panel. Whenever a key is pressed, the code
thereof appears on the display: e.g., by pressing [P4] the “P4” code is displayed; by pressing [P6] the “P6” code is
displayed, and so on.
The code of the key [P7] is not displayed.
To exit the testing program, press [F+P9] .
UFc Converter voltage – frequency test
The converter voltage – frequency test shows two numbers on the displays that represent the electronic control board conversion
values.
These values are used by technical support personnel to determine the operational status of the board.
To exit the testing program, press [F+P9] .
Ret Returns to SERVICE mode
This Testing Program menu option returns the machine to SERVICE mode.
Press [F+P3] : the machine will return to NORMAL mode.
