Use and maintenance manual – 10/2016 Rev. 3 Page 25

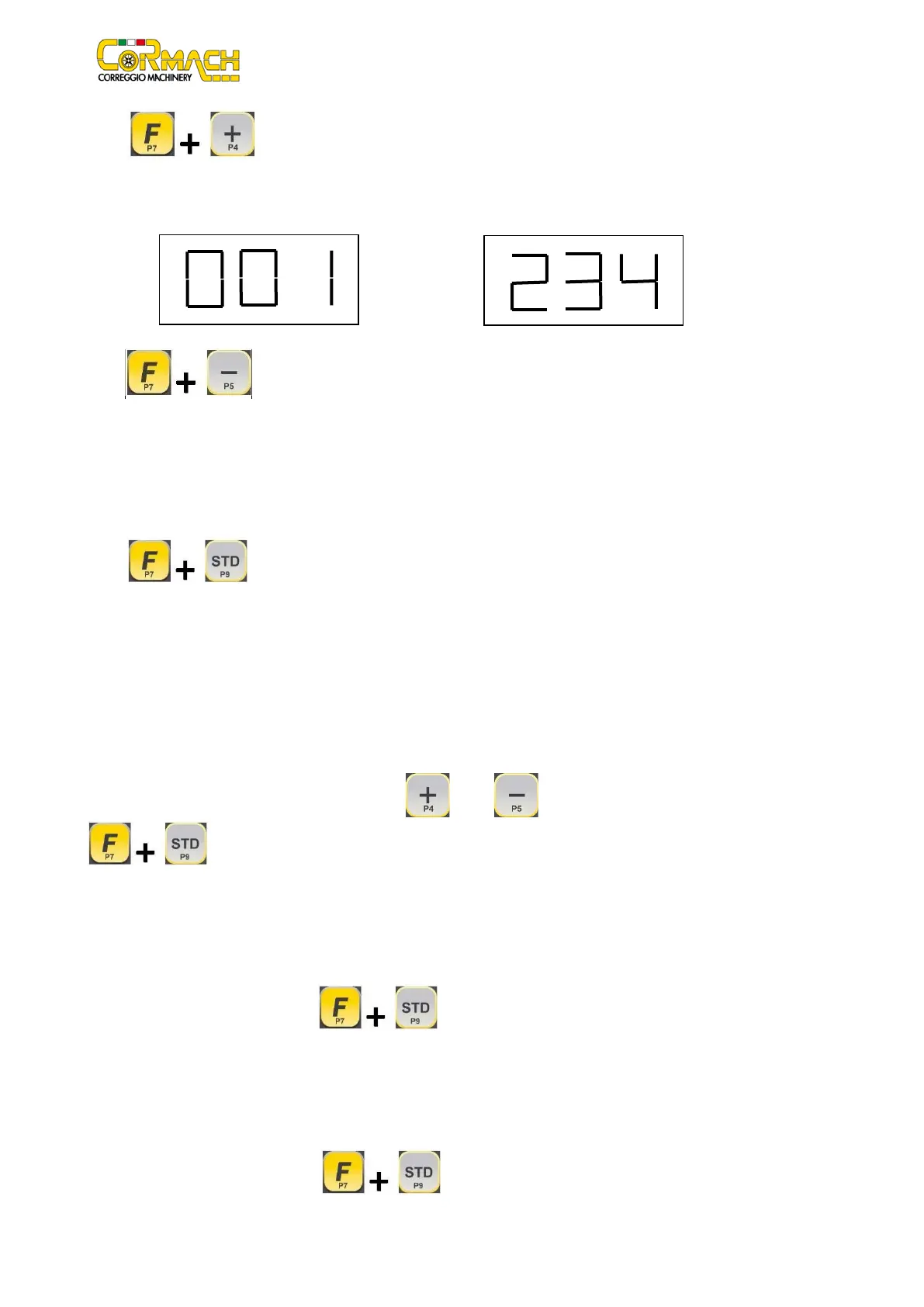

[F+P4] - Read launch number counter
By pressing this button, the total number of balancing launches run by the machine is displayed. The number of launches is shown
on both displays. Figure F18.3 shows an example of a machine display that has run 1234 balancing launches.
Figure F18.3: Display of the number of balancing launches
[F+P5] - - Parameters
The Parameter menu is intended for technical support personnel and, therefore, is not described in this manual. Access to this menu
is protected by password.
[F+P6] Not used
This button is not currently used in SERVICE mode.
[F+P9] - Testing Program MENU
This menu allows you to run tests for some machine functions. The Menu has the following options:
• Enc Encoder disc test;
• RPM Number of shaft RPMs test;
• SIG Pick-up signals test;
• dPy Display test;
• tAS Keypad test;
• UFc Converter voltage-frequency test;
• Ret Returns to SERVICE mode.
To scroll through the different menu options, press [P4] or [P5] until the desired option is viewed, then press [F+P9]
to confirm.
NOTE: The testing programs listed are mainly reserved for technical support personnel but may also be run by end users as they do
not impair the machine operation.
EnC Encoder disc test
This test allows you to control the function of the encoder disc which informs the machine of the angular position of the shaft. A
number indicating the angular position will appear on the right display; this number must be included between 0 and 255.
To exit the testing program, press [F+P9] .
rPM Number of shaft RPMs test
This test allows you to control the number of shaft RPMs during the launch. A number indicating the speed of the shaft will be viewed
on the right display.
Perform a manual spin, by pushing the motorcycle adaptor counterclockwise. During the launch, the number of
RPMs of the shaft is displayed.
To exit the testing program, press [F+P9] .
