ADJUSTMENT FOR ICE BRIDGE THICK-
NESS
An ice bridge connecting all cubes is necessary for a proper
harvest of discharge of cubes from the evaporator.
To increase ice bridge thickness carefully turn adjustment
screw counter-clockwise no more
than one turn at a time.
Wait and check thickness before re-adjusting. (See Diagram
1 & 2)

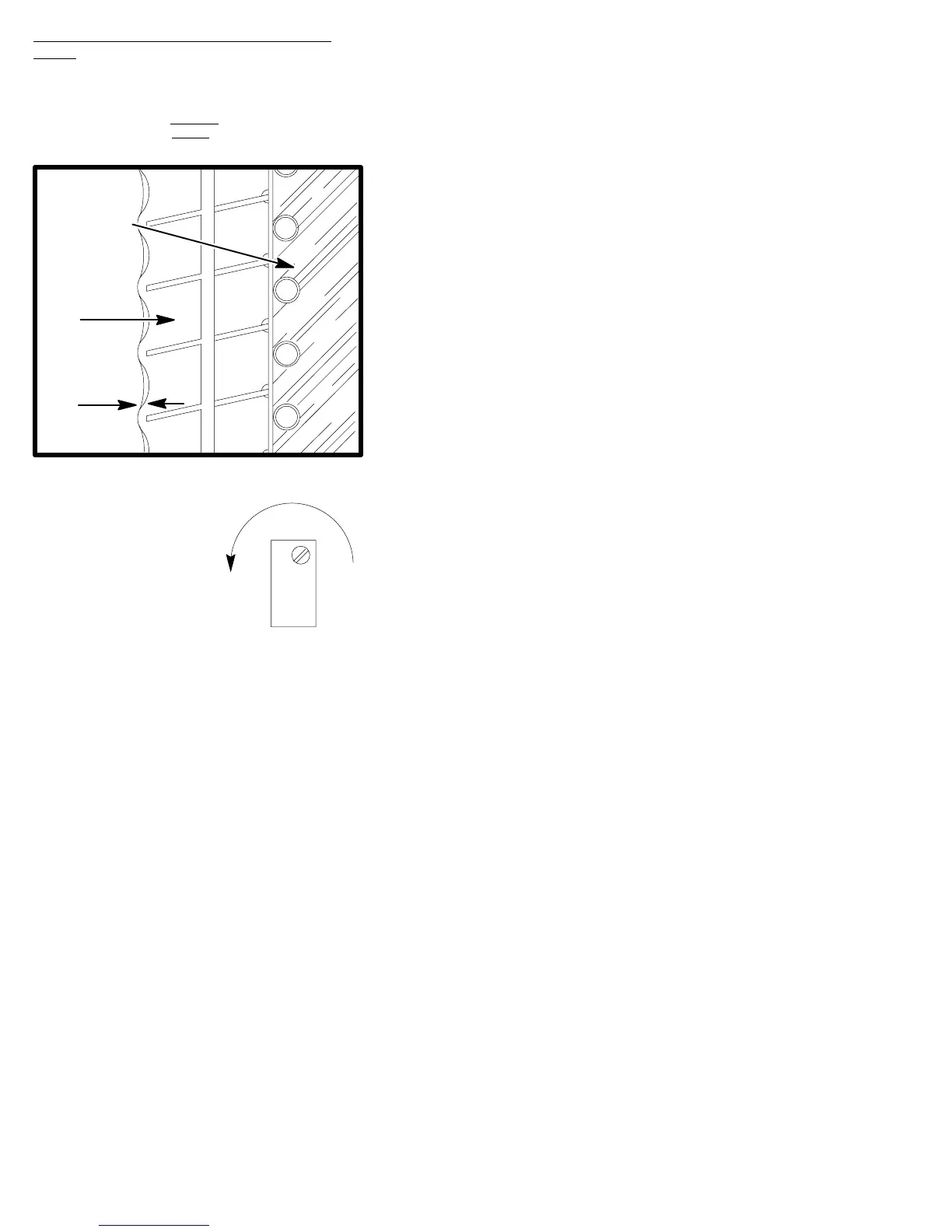

EVAPORATOR
CROSS
SECTION
ICE
SLAB
ICE
BRIDGE
THICKNESS
INCREASE
ADJUST
HERE
Series 300 and 322:
Adjusting screw located
on left center.
Series 500, 700, 900, and
1400:
Adjusting screw is located
on the upper left corner.
