Cornelius ICE MAKER - Checkout Procedure for Harvest Bin Switches; Adjustment Procedure for Harvest Bin Switches

TD 18418
CHECKOUT PROCEDURE FOR HARVEST
BIN SWITCHES
Turn on the ice machine and move the evaporator curtains(s)
away from the evaporator(s). The ice machine should then
shut off in approximately 8 seconds. (see detail A).
Slowly let the evaporator curtain(s) move back toward the
evaporator(s) until the bottom edge of the curtains(s) is at
least at the bent edge of the water reservoir or closer to the
evaporator. With the curtains(s) at that position the machine
should start.
ADJUSTMENT PROCEDURE FOR HARVEST
BIN SWITCHES
If adjustment is necessary, loosen acorn nuts and move
proximity switch closer to the curtain(s) and make sure the

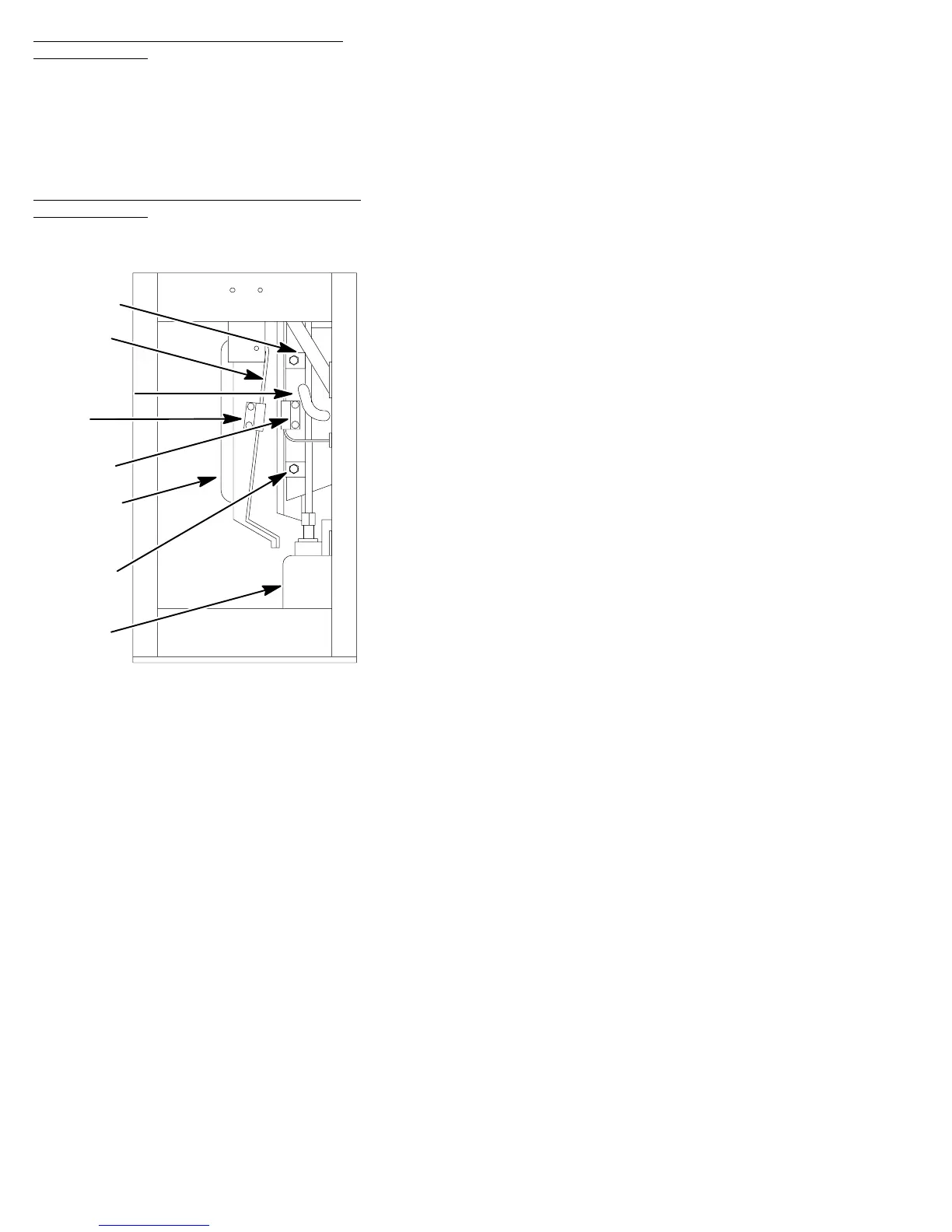

curtain is properly mounted. (See detail A).
CURTAIN
EDGE
MAGNET
EVAPORATOR
CURTAIN
WATER
RESERVOIR
ACORN
NUT
SENSOR
THERMOWELL
PROXIMITY
SWITCH
ACORN
NUT
