FMFV - Installation Manual
© 2018-19, Cornelius Inc. - 8 - Publication Number: 919000012INS
Installation of C-Box
Table 4: Installation of C-Box

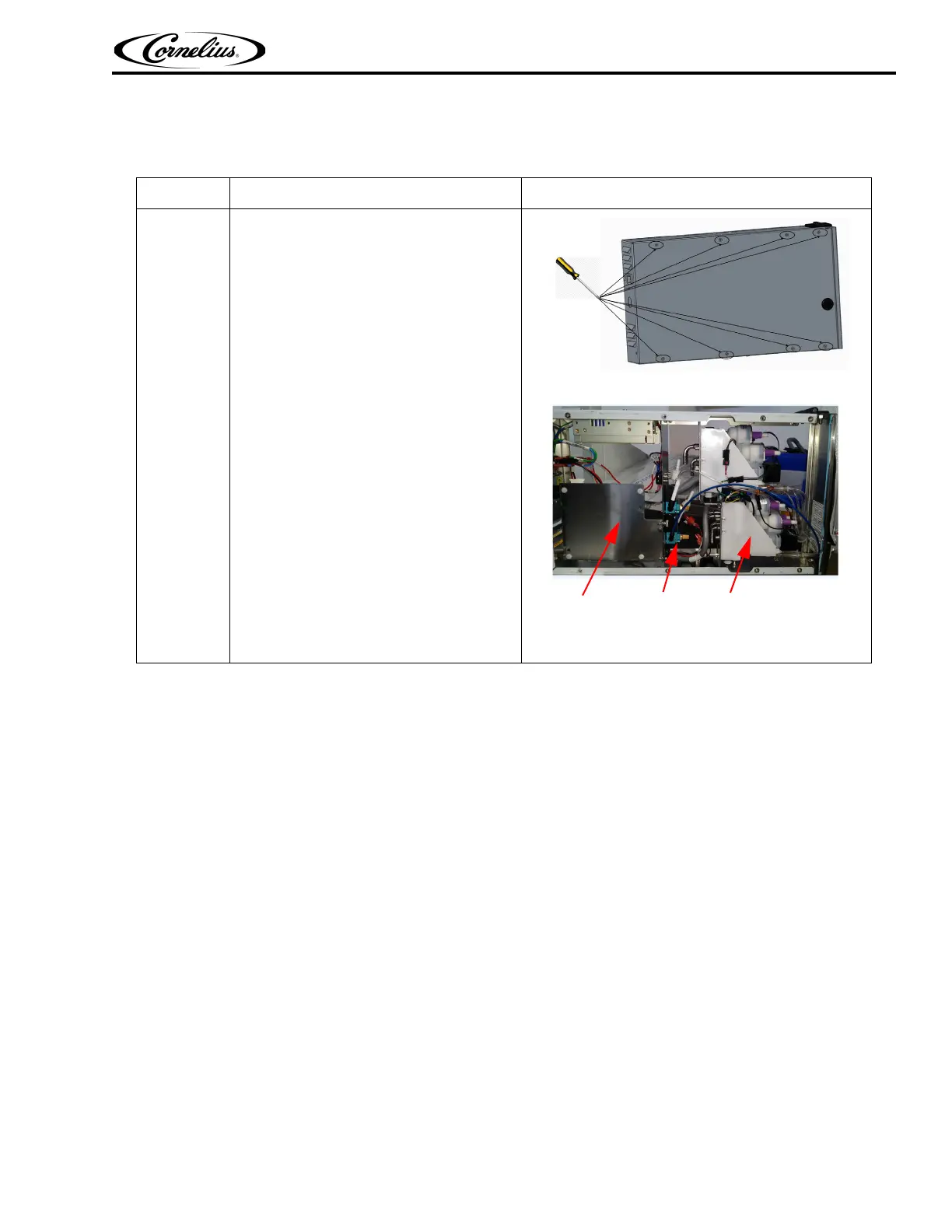

Sl. No. Description Figure
1.
Remove the C-box side panel (left/
right) by unfastening 8 mounting
screws by using screw driver,
phillips #2.
Open front door to access the MFV
valves, Solenoid valves and PCB
brackets.
Figure 3.
Figure 4.
MFV VALVESOLENOID
VALVE
PCB
BRACKET
