FMFV - Installation Manual
Publication Number: 919000012INS - 9 - © 2018-19, Cornelius Inc.
2.

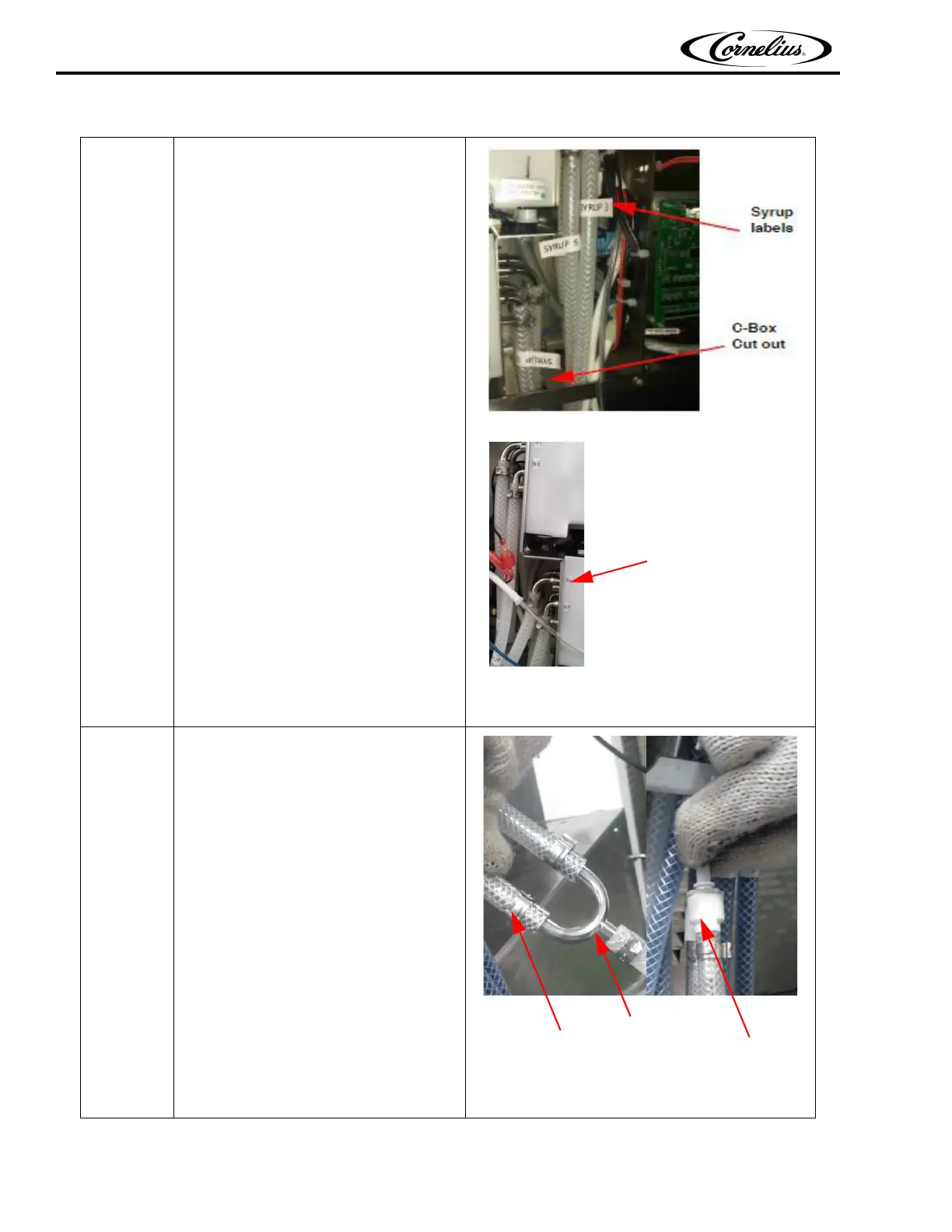

Route the tube through bottom cut
out of C-Box
Connect all 8 “Hose flavor pump”
(910002209) end to the dole fittings
of MFV and clamp all the hoses with
oetiker clamps
NOTE: Flavour lines must be
connected in series as
per the label on MFV.
Figure 5.
Figure 6.
3.
Connect “1/4 inch Hose Y connector
assembly (910002210)” to two
solenoid valve by 1/4” bradded hose
Connect the other end of the
bradded hose to push connector.
NOTE: Clamp compressed air
tubes by oeiteker.
Figure 7.
Table 4: Installation of C-Box
1/4” Bradded hose
910002210
Push to connect
fitting
To Next Page
