FMFV - Installation Manual
© 2018-19, Cornelius Inc. - 12 - Publication Number: 919000012INS

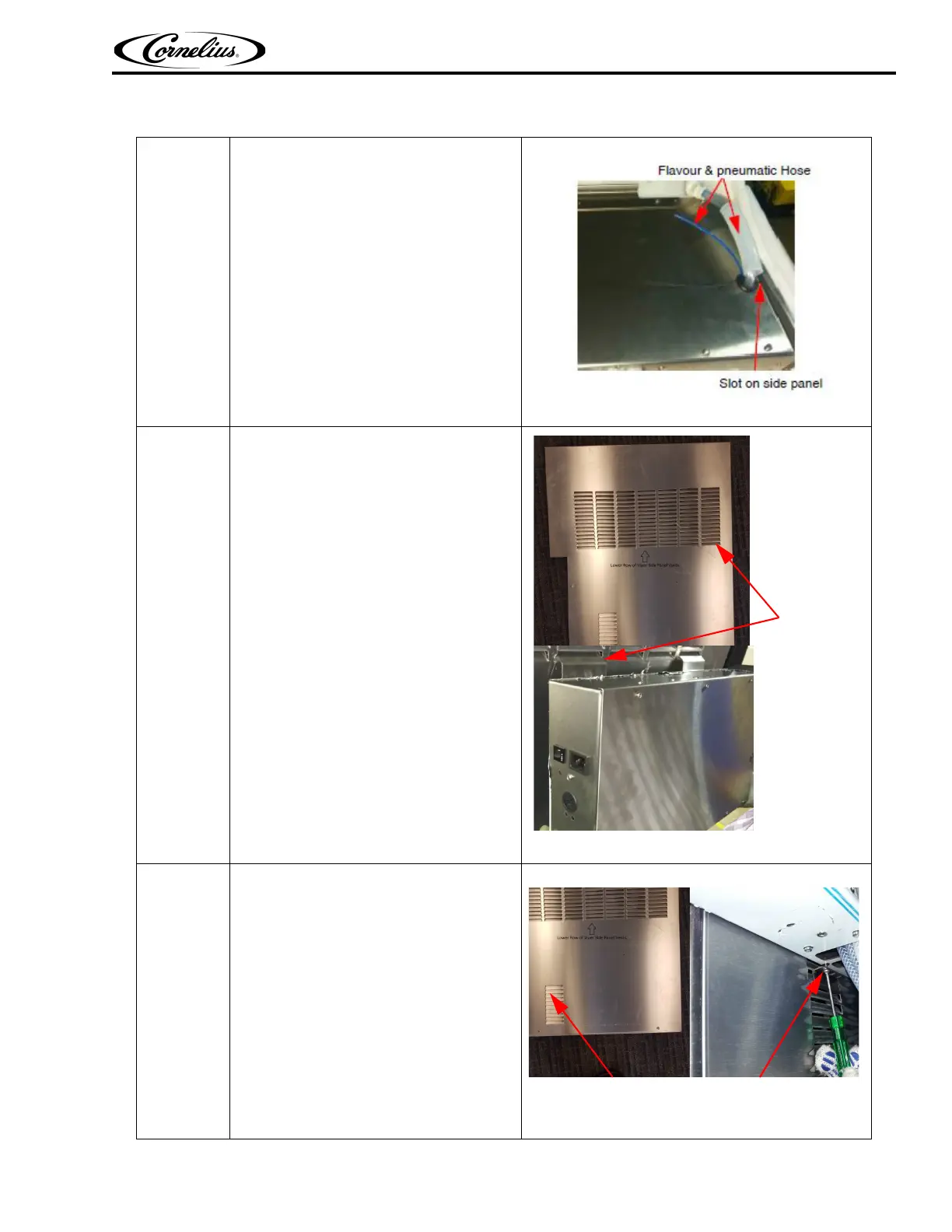

11.
Ensure the flavour and air tubes
are taken out from side panel,
according to the side of mounting.
The Flavor & pneumatic hoses can
be taken out using the slot on side
panel.
Figure 14.
12.
Hook the C-box to bottom most
row of louver (air vent) of the side
panel of the unit.
Figure 15.
13.
After placing the C-box on the unit
assemble C-box Bottom
(910001939) to the bottom louver
on the viper and fasten to C-box
using screw M4 X 10
Figure 16.
Table 4: Installation of C-Box
and
pneumatic hose
Bottom
row
louver
Bottom louver Holding bracket
