Appendix A: System Specifications
MA1000 Installation and Configuration Guide 31

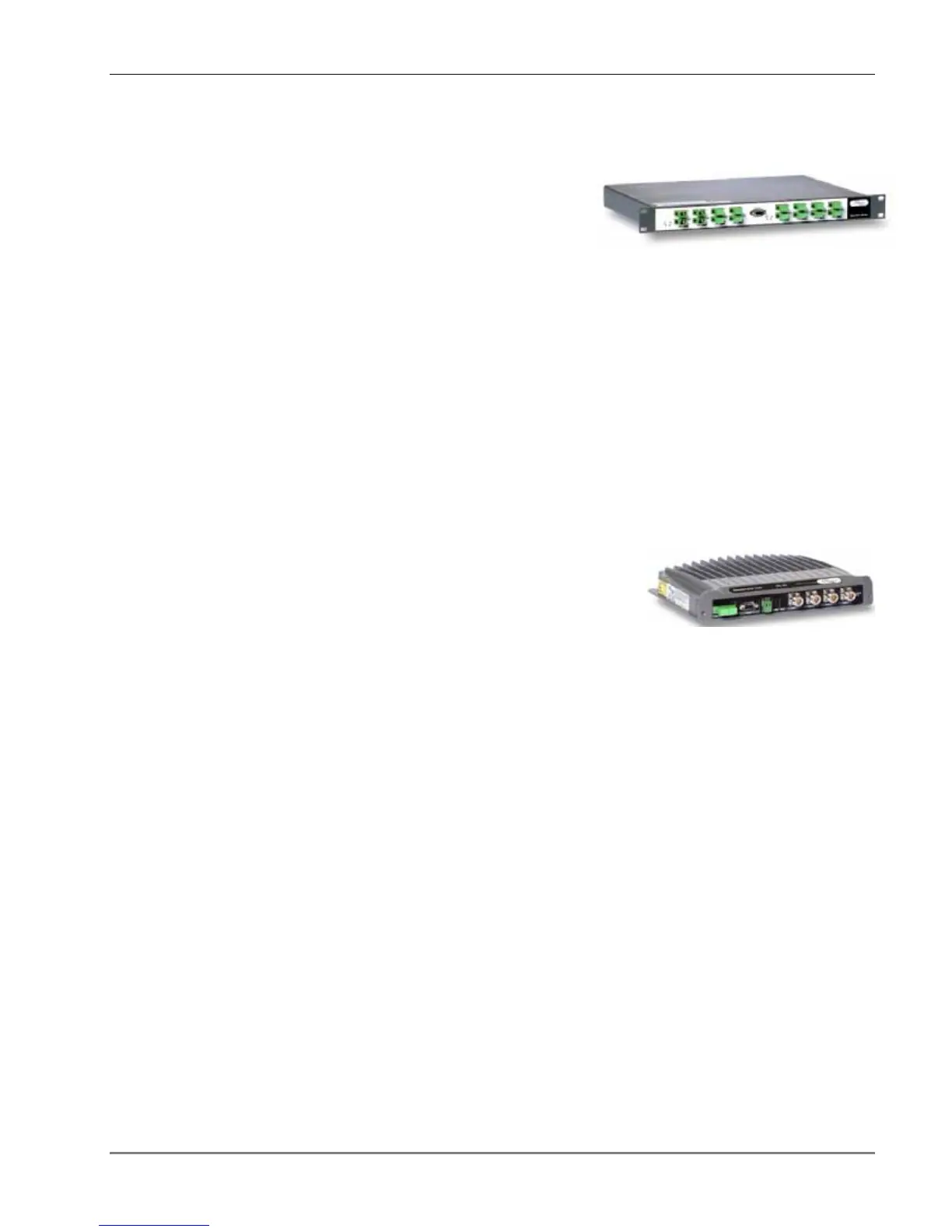

MA1000 Component Specifications
Base Unit
Models: 4-port; 8-port model
Supported Services:
Wideband device supporting all services supported by MA
systems
Power: Input power 20 to 48V DC
Power
Consumption
14W (8-port BU)
RF Connections: N-Type Female, 50 ohm – interface to RIU or to passive
BTS Interface Optic Connections: Four or eight (depending on the model) SC/APC optic connections
Remote Management Controller: SNMP, NMS via connection to the MA-410, MA-430 or SC-450
Physical Characteristics
Dimensions (WxDxH): 19” x 8” x 1.74” (482.6x203.2x17.4mm)
Weight:
3 Kg (6.6 lb.)
Mounting: Rack mountable in 19-in rack (mounting brackets included)
RHU
Supported Services: Two services corresponding to the model
Power: Input power: 20 to 48V DC
Power
Consumption:
29W
RF Connections: To antennas: N-type Female, 50 ohm
To Add-On: SMA 50 ohm
Remote Management:
SNMP, NMS via Base Unit connection to the MA-410, MA-430 or
SC-450 controller
Physical Characteristics:
Dimensions (WxDxH): 10.98” x 9.5” x 1.74” (278.9x241.3x44.2mm)
Weight:
2.8 kg (6.17 lb.)
