18 - START-UP
COROB™ D800 HD

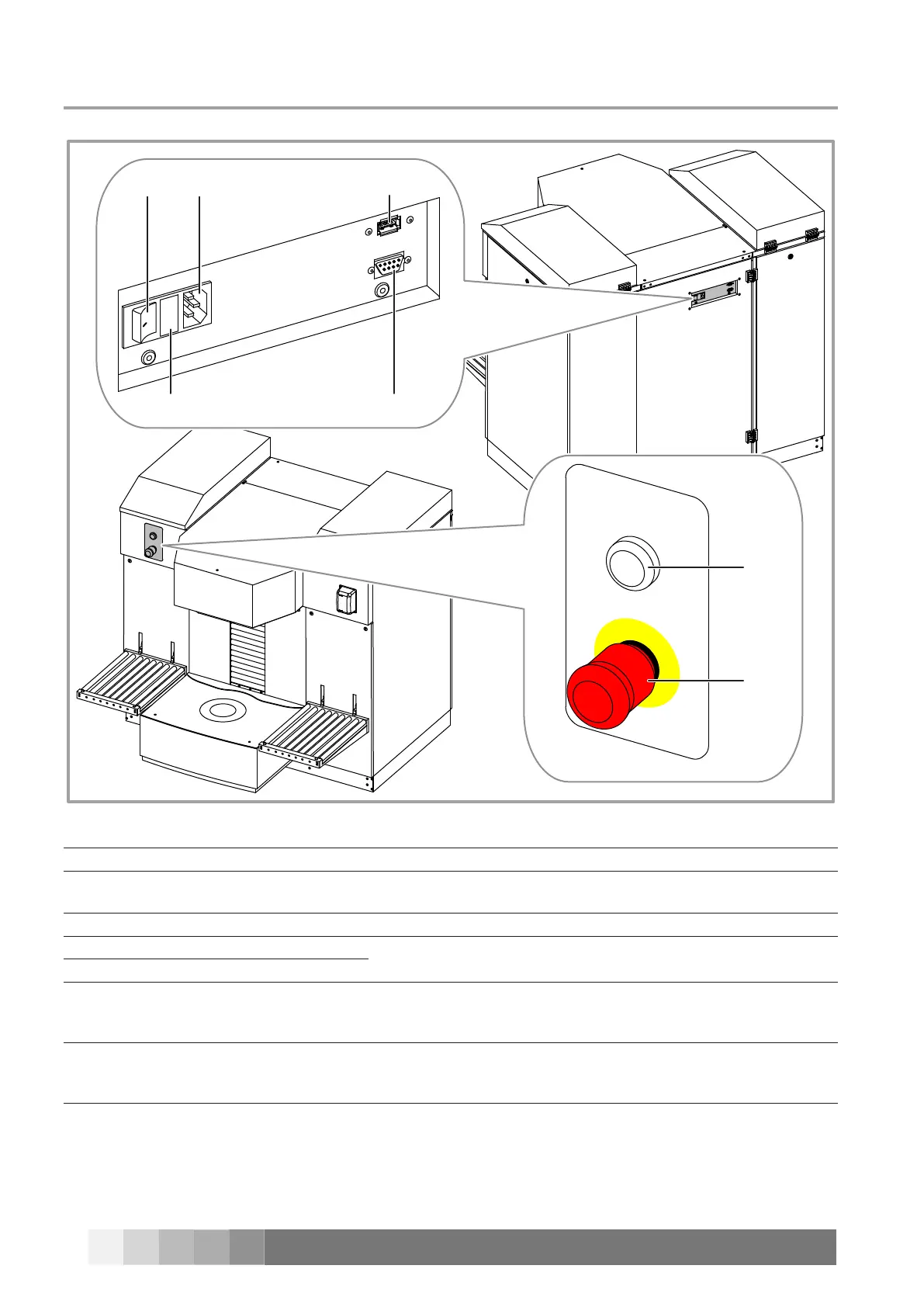

5.2 Control devices and connections
MAX
MIN
6
7
0
1 3
5
2
4
Machine main switch.1.
Fuse compartment.2.
The value of fuses is shown in the technical specications table
(chapter 8.1).
Main plug.3.
RS232 serial port.4.
For the connection to the management computer.
USB serial port.5.
Off-line button with ON lamp.6.
To interrupt machine functions, without shutting it off; it also
enables to open and close the Autocap to allow cleaning the
nozzles.
Emergency button.7.
Red mushroom-head button. This is the emergency stop button
for the machine, to use in case of a breakdown or dangerous con-
ditions (chapter 5.7).
