Section 4
Dash Pod Circuit Breaker Box

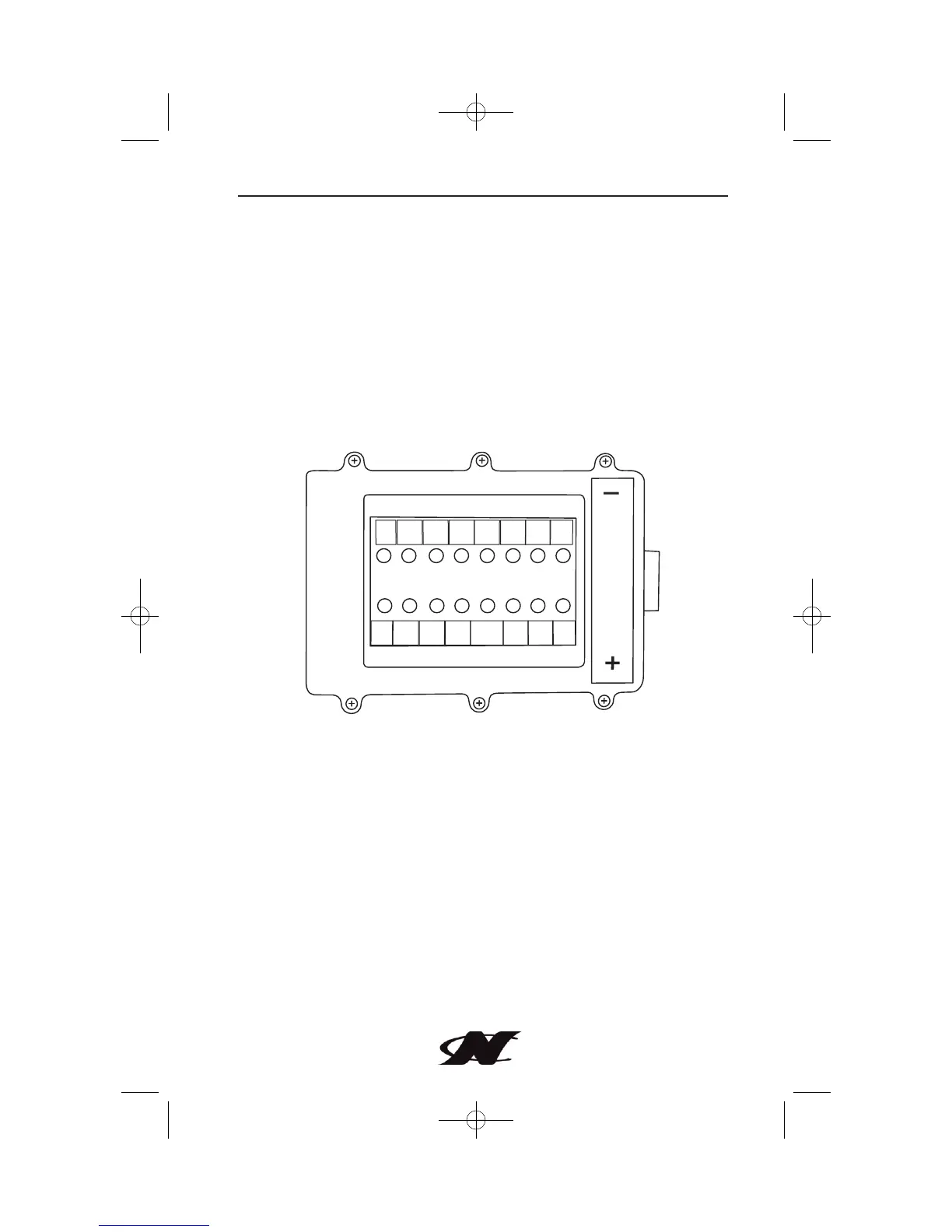

All dash pod switches interface with a sealed circuit breaker box
located in the driver’s kickboard. The circuit breaker box consists
of 16 soft, opaque, flexible vinyl tubular shields which cover 16
circuit breakers. When the circuits are functioning, the tubular
shield is somewhat flexible. A tripped circuit breaker will extend
and fill the tubular shield, causing it to be inflexible. To locate a
tripped circuit breaker, run your fingers over the two rows of
switches and locate the switch shield which has become inflexible.
To re-set, press in the extended circuit switch shield.
