CORRECT CRAFT 210 - Dash Pod and Console; 210, 216 V, 226, 230 Limited Dash Pod and Console Without Nautique LINC System; 210, 216 V, 226, 230 Limited; Nautique LINC System

3-6
210, 216V, 226, 230 Limited
Dash Pod and Console without
Nautique LINC System
CORC0249
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22

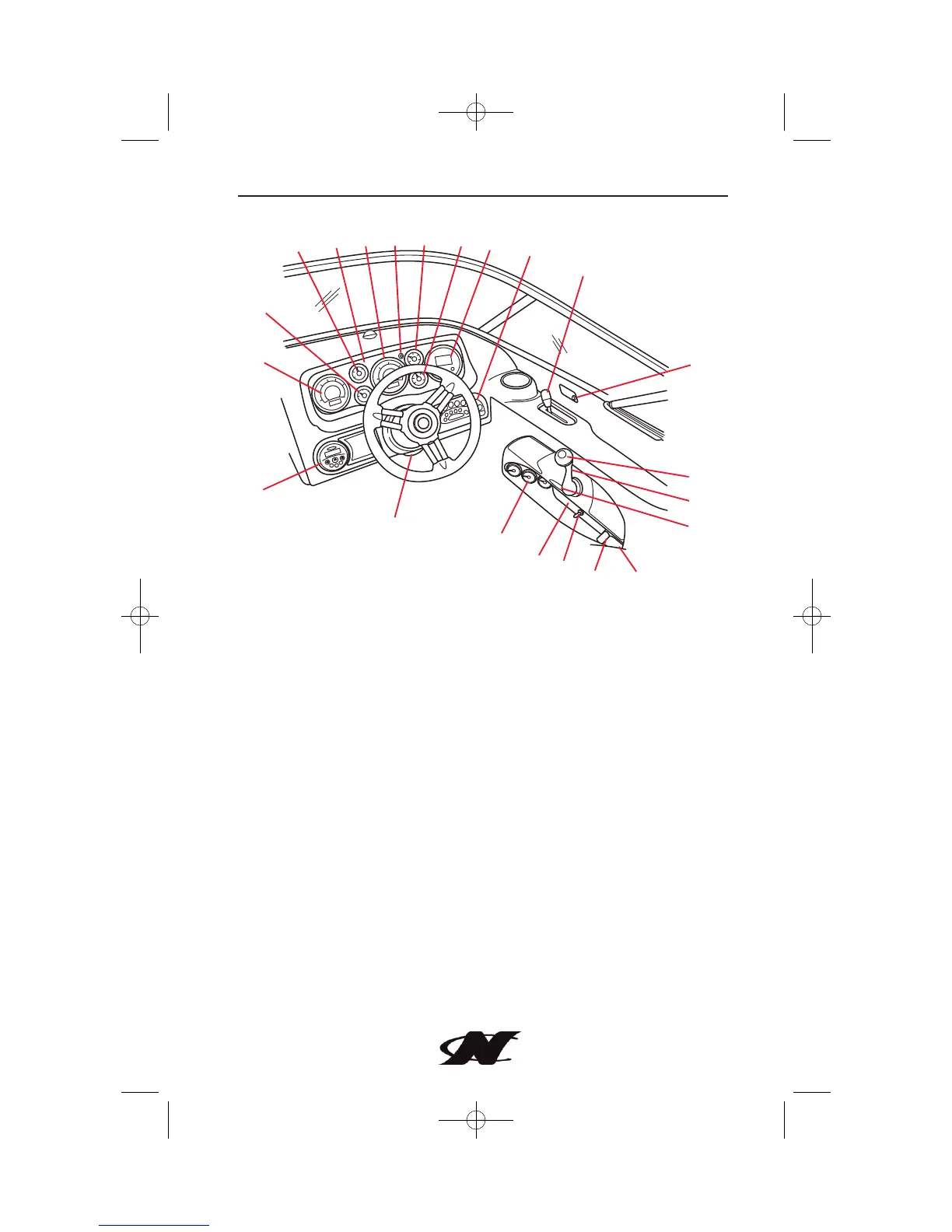

Section 3
1. Digital Stereo Remote
w/Clock
2. Tachometer
3. Oil
4. Fuel
5. Check Engine Light
6. Speedometer
7. Service Soon Light
(catanium engine only)
8. Engine Temperature Gauge
9. Voltage Gauge
10. Nautique Cruise/Zero Off
11. Ignition and Switch Panel -
refer to Ignition and Switch
Panel in this section
12. SportShift™ Hydro-Gate
Control Handle
13. Fire Extinguisher System -
optional
14. Shifter/Throttle Control
Handle
15. Shift Safety Lock-Out
Umbrella
16. Neutral Warm Up Button
17. Auxiliary Input
18. 12V Port
19. Emergency Stop Switch
20. Automatic Bilge Panel
(210, 230 only)
21. Ballast Tanks Level Gauges
22. Steering Wheel Tilt Lever
NOTICE
A full description of the gauges and switches and their functions
is discussed in Section 4.
