CORRECT CRAFT 210 - Page 61

3-5
210, 211, 216V, 226 and 230
211 SE Dash Pod and Console
12V
1
2
V
CORC0247
WATER
E
F
1/2
WATER
E
F
1/2
WATER
E
F
1/2
2122
20
18
19
16
15
10
9
8
7
5
4
3
2
1
23
17
6
BILGE
NAV/
ANCHOR
BLOWER
HORN
11
12
13
14

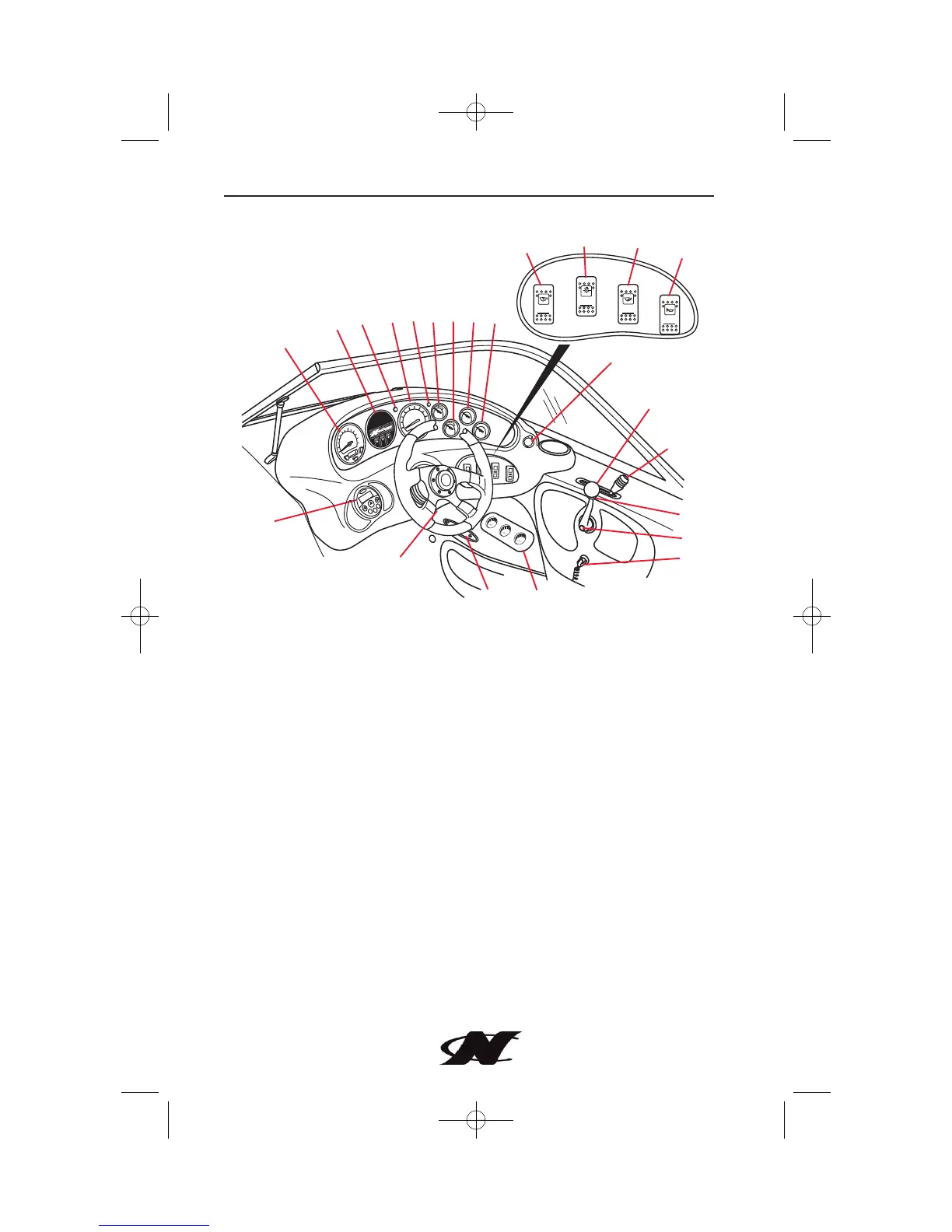

1. Digital Stereo Remote w/Clock
2. Tachometer
3. Nautique Cruise
4. Check Engine Light
5. Speedometer
6. Service Soon Light
(catanium engine only)
7. Fuel
8. Oil
9. Engine Temperature Gauge
10. Voltage Gauge
11. Engine Compartment/Bilge
Area Blower Switch
12. Navigation/Anchor Light
Switch
13. Bilge Pump(s) Switch
14. Horn Switch
15. 12-Volt Port
16. Shifter/Throttle Control
Handle
17. SportShift™ Hydro-Gate™
Control Handle
18. Shift Safety Lock-Out
Umbrella
19. Neutral Warm-Up Button
20. Emergency Stop Switch
21. Ballast Tank(s) Level Gauges
22. Automatic Bilge Panel
23. Steering Wheel Tilt Lever
NOTICE
A full description of the gauges and switches and their functions is
discussed in Section 4.
