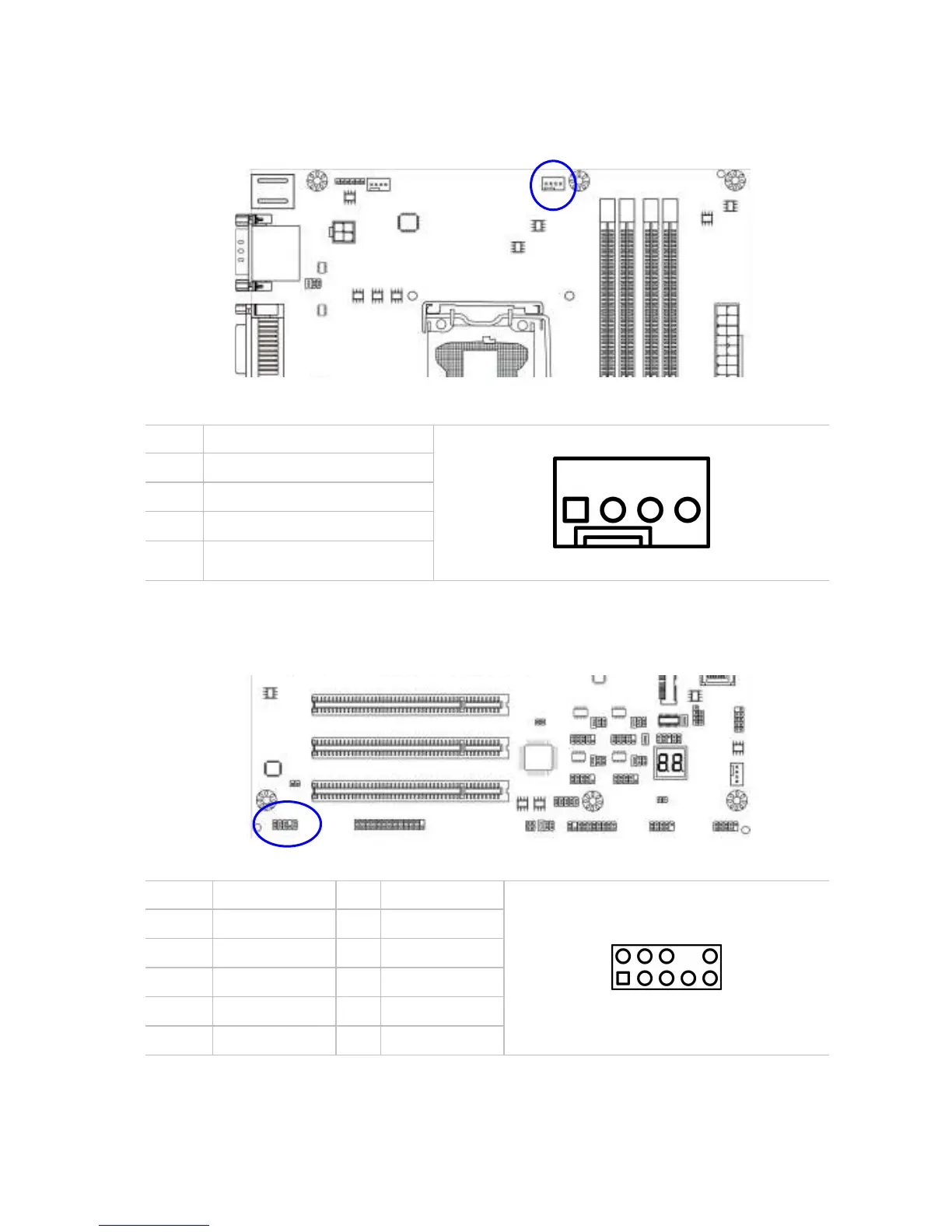

Corvalent Q77AX - CPUFAN and FP_AUDIO Header Pinouts

23
CPUFAN: Processor Fan header (PWM)
PIN ASSIGNMENT
1 4
1 GND
2 12V
3 Tachometer
4 PWM
FP_AUDIO: Front Panel AUDIO header
PIN ASSIGNMENT PIN ASSIGNMENT
2 10
1 9
1 MIC-L 2 AGND
3 MIC-R 4 Presence
5 LINE-OUT-R 6 NC
7 Front Sense 8 Key
9 LINE-OUT-L 10 NC
