Corvalent Q77AX - FPANEL and KBMS Header Pinouts

25

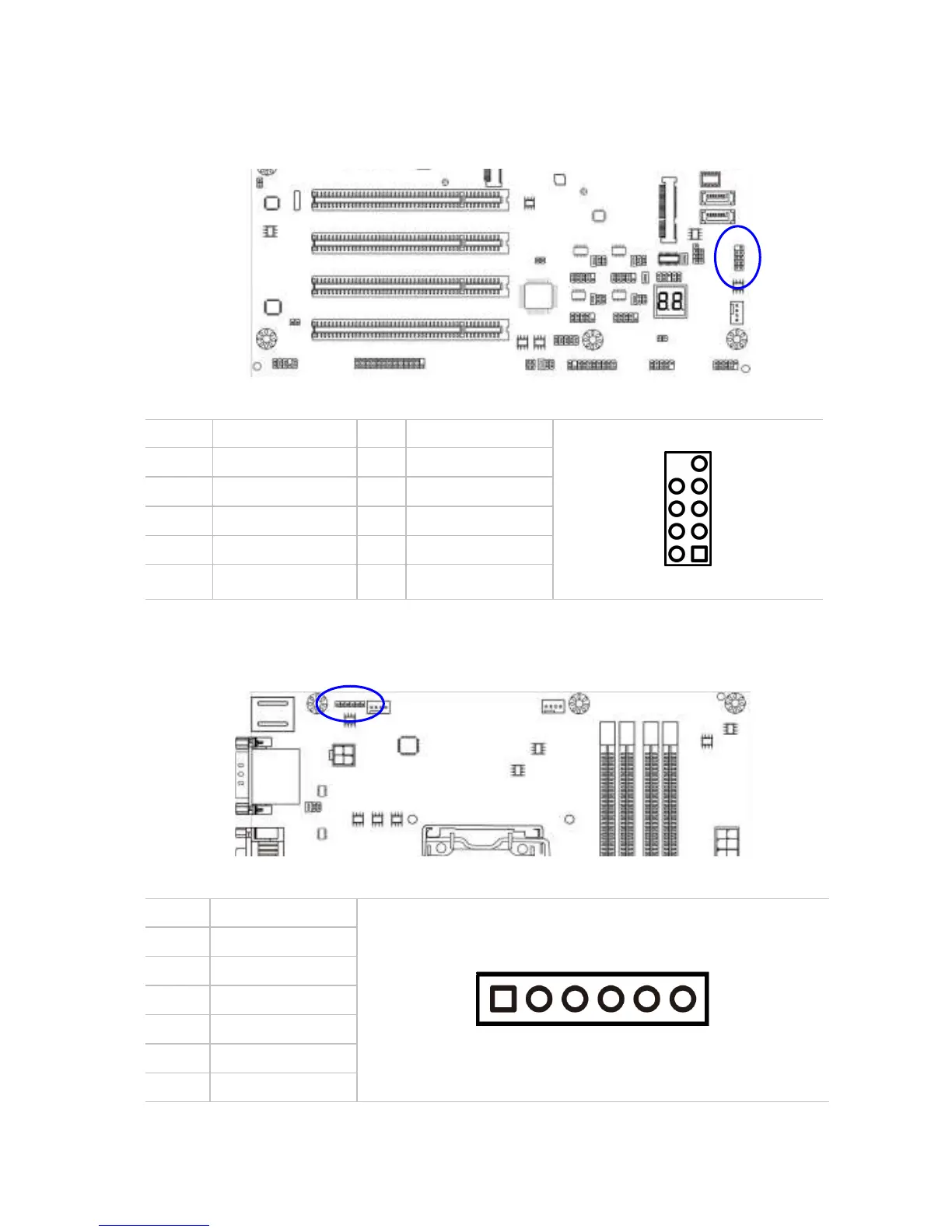

FPANEL: Front Panel header
PIN ASSIGNMENT PIN ASSIGNMENT 10 9
2 1
10 KEY 9 NC
8 Power SW (GND) 7 Reset SW
6 Power SW 5 Reset SW (GND)
4 Power LED (-) 3 HDD LED (-)
2 Power LED (+) 1 HDD LED (+)
KBMS: PS/2 Keyboard/Mouse header
PIN ASSIGNMENT
1 6
1 KBCLK
2 GND
3 KBDATA
4 MSDATA
5 VCC
6 MSCLK
