Corvalent Q77AX - Page 27

27

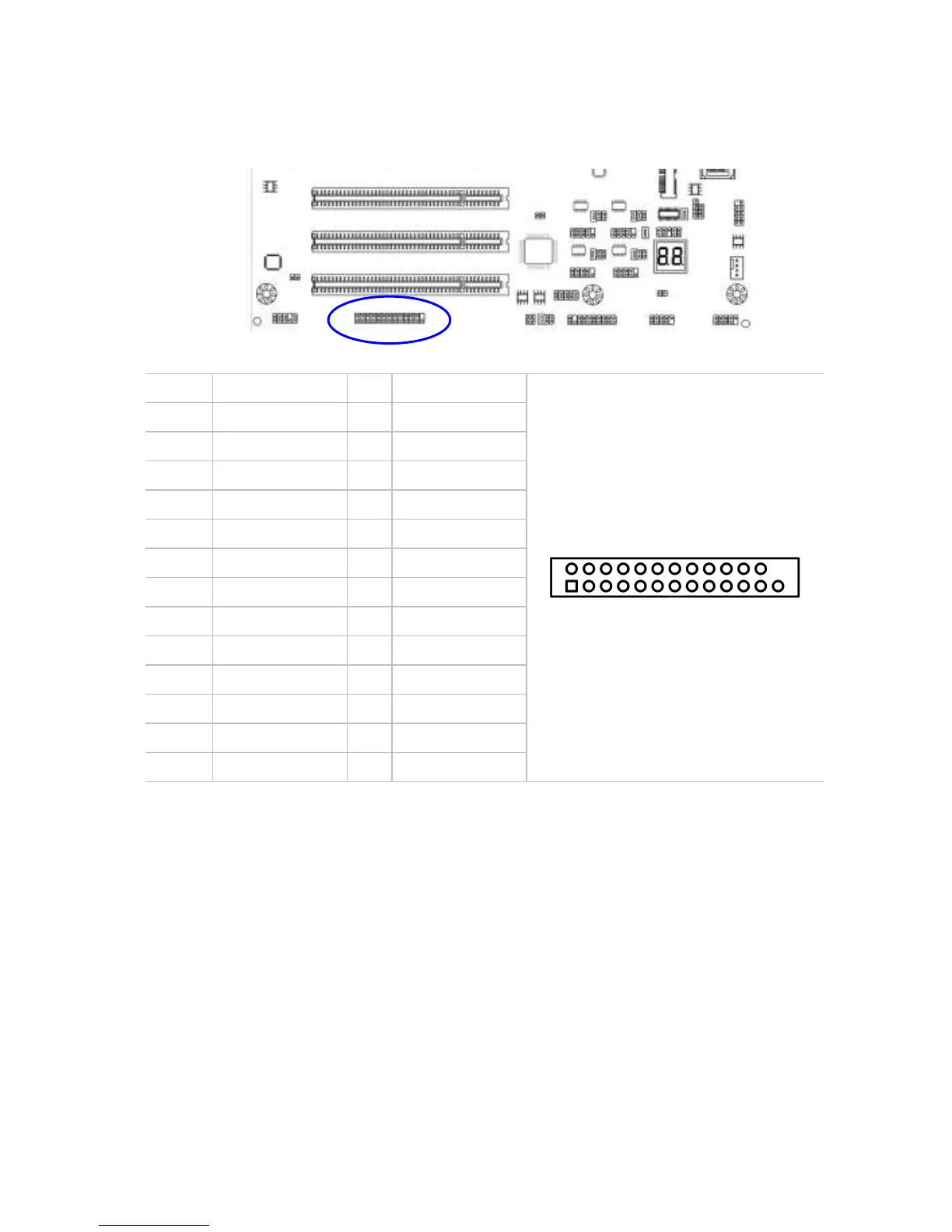

PARALLEL: Parallel Port header
PIN ASSIGNMENT PIN ASSIGNMENT
2 20
1 19
1 STB# 2 AFD#
3 PD0 4 ERR#
5 PD1 6 INIT#
7 PD2 8 SLIN#
9 PD3 10 GND
11 PD4 12 GND
13 PD5 14 GND
15 PD6 16 GND
17 PD7 18 GND
19 ACK# 20 GND
21 BUSY 22 GND
23 PE 24 GND
25 SLCT 26 KEY
