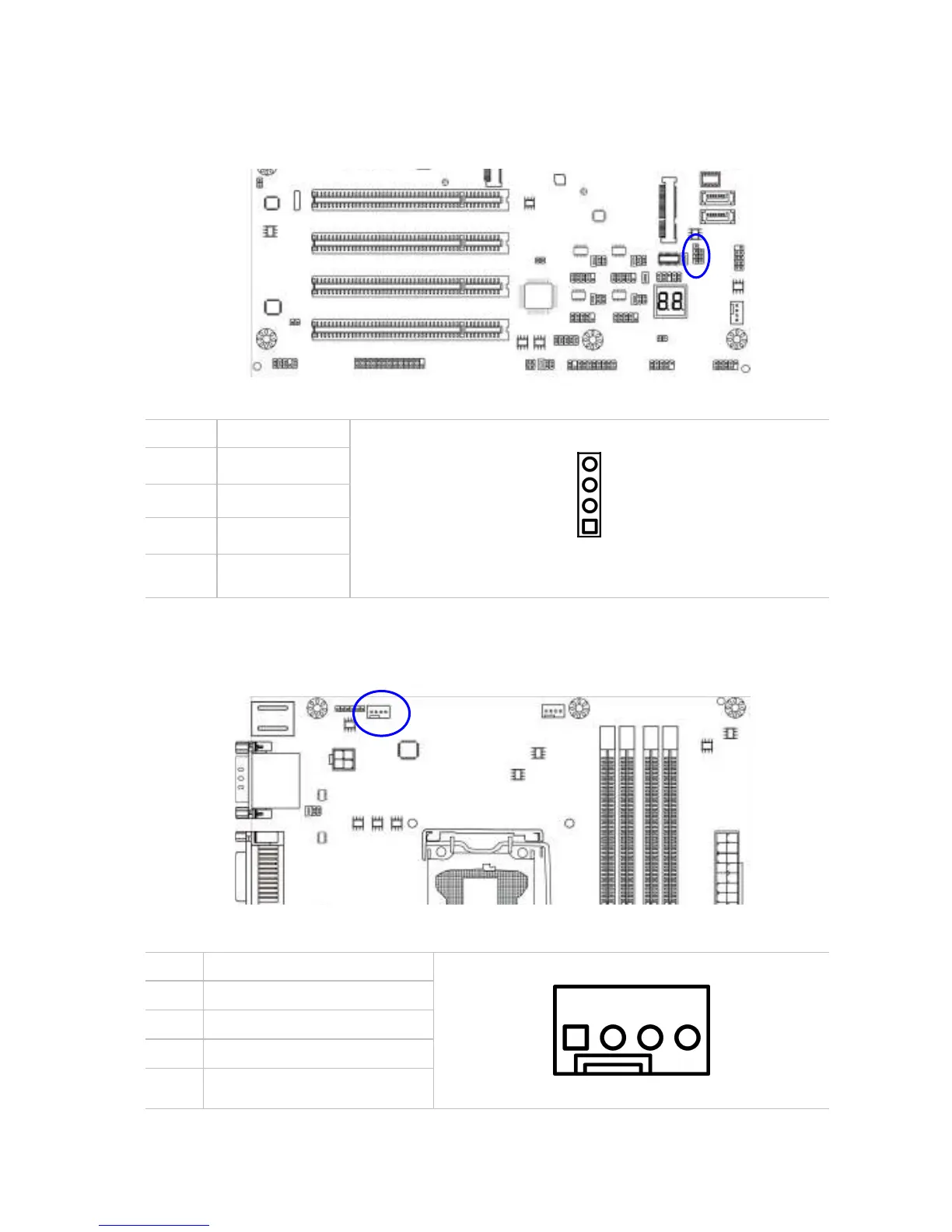

SPEAK: Legacy Speaker header
PIN ASSIGNMENT 4
1
4 SPEAK
3 NC
2 NC
1 VCC
SYSFAN1: System fan header
PIN ASSIGNMENT
1 4
1 GND
2 12V
3 Tachometer
4 PWM
