To minimise component wear, we recommend that you engage
the 4WD and lock when the vehicle is at a complete standstill.
NEVER engage the 4WD and lock when the steering is turned.
Do not use the 4WD and lock on paved roads.
Remember to service the 4WD actuator and gearbox as
indicated in the Service Chart (p. 44/45) to avoid premature
deterioration.
LOCATION OF COMPONENTS

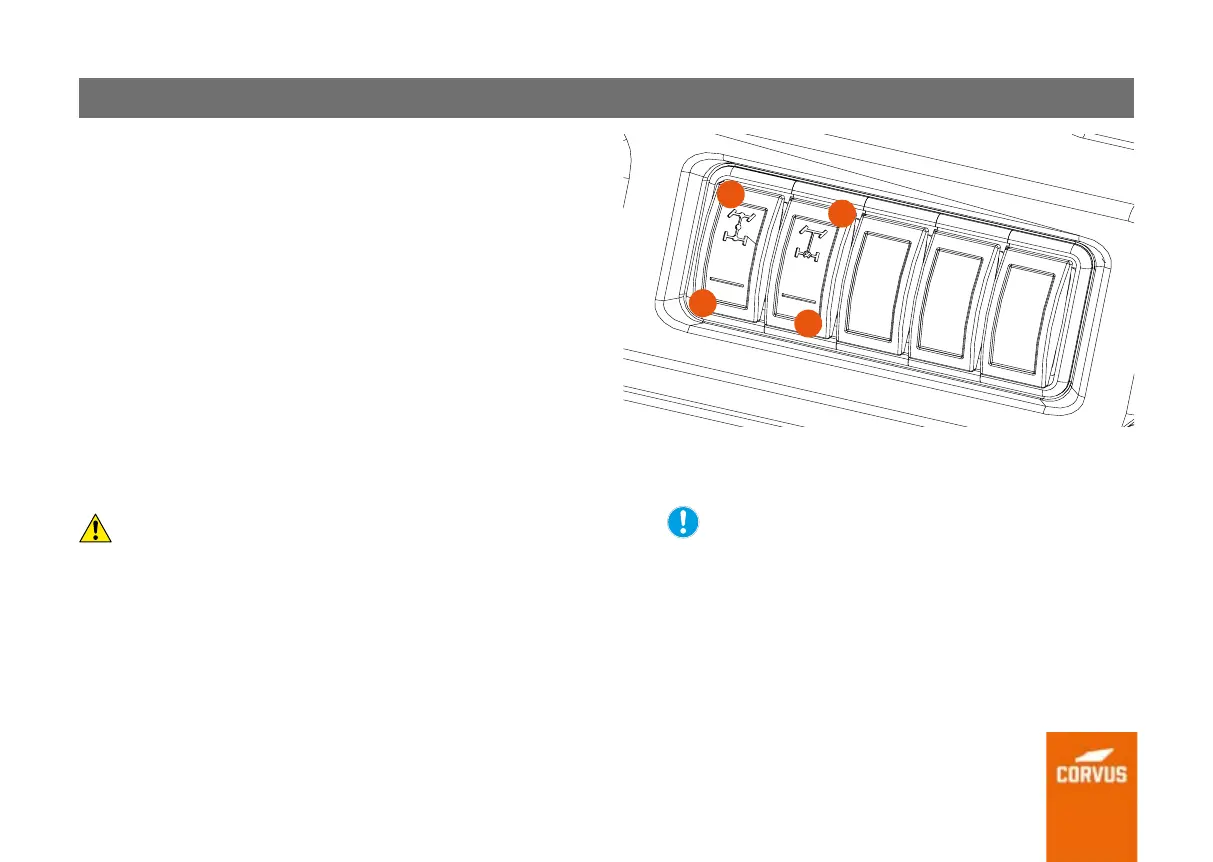

2WD / 4WD DRIVELINE SWITCH
Located in the centre of the instrument panel.
It has 2 positions:
2WD: 2-wheel drive transmission -rear wheel drive- (1).
4WD: 4-wheel drive transmission -rear wheel drive- (2).
REAR DIFFERENTIAL LOCK SWITCH
Located in the centre of the instrument panel.
It has 2 positions:
OFF: Rear dierential unlocked (3).
LOCK: Rear dierential locked (4).
THE 4WD AND THE DIFFERENTIAL LOCK MUST BE DEACTIVATED
WHEN NOT REQUIRED.
EXCEEDING 20 KM/H WITH THE DIFFERENTIAL OR 4WD ENGAGED
MAY CAUSE THE VEHICLE'S GEARBOX OR DIFFERENTIAL TO
BREAK.
1
3
2
4
