air cleaner (cleaning the air cleaner)
When cleaning the air cleaner, take care to make sure it does not become
obstructed and that no dirt gets into the engine, especially when using the
vehicle in dusty areas.
Without fail, inspect the air cleaner before and after each use, as indicated
in the Service Chart (see page 44/45).

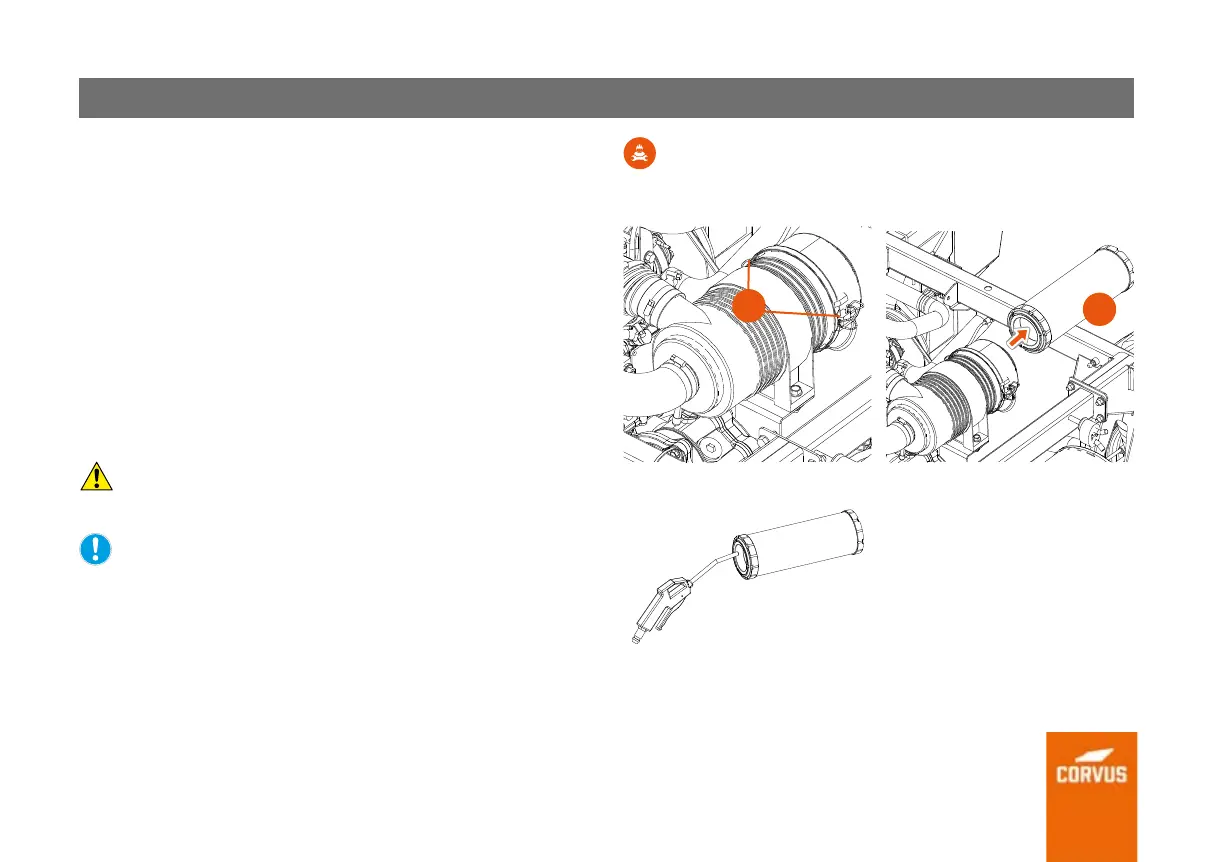

Procedure:
1. Release the latches (1) that hold the air cleaner cover.
2. Remove the air cleaner cartridge (2).
3. Clean with compressed air, from the inside toward the outside.
4. Clean the inside of the air cleaner housing with a damp cloth.
5. Replace the air cleaner cartridge if it is very dirty, wet or deteriorated.
Recommendation:
Do not apply air at an excessive pressure, to avoid tearing the air cleaner
paper which could result in severe engine damage. Recommended air
pressure between 42 - 71 PSI / 0.29 - 0.49 MPA / 3 - 5 KGF/cm
2
These operations must be carried out with the appropriate
precaution, using a mask and goggles.
A clogged air cleaner allows dirt into the engine, causing excessive
wear and damaging it.
A clogged or damaged air cleaner can cause severe engine damage.
Regulations oblige garages to collect and store, without mixing,
hazardous or toxic waste, contaminated waste and inert non-
hazardous waste. Such waste may not be dumped and must rather
be processed by accredited managers.
TECHNICAL INFORMATION
Recommended air pressure between 42 -71 PSI / 0.29 -0.49 MPA /
3 -5 KGF/cm
2
Air cleaner cartridge: 02012260000
1
3
