FRONT LAMPS (LOW AND HIGH BEAM AND TURN SIGNAL LAMPS)
The bulbs and headlamps may be very hot.
Procedure:
1. Switch the vehicle o.
2. Open the front hood.

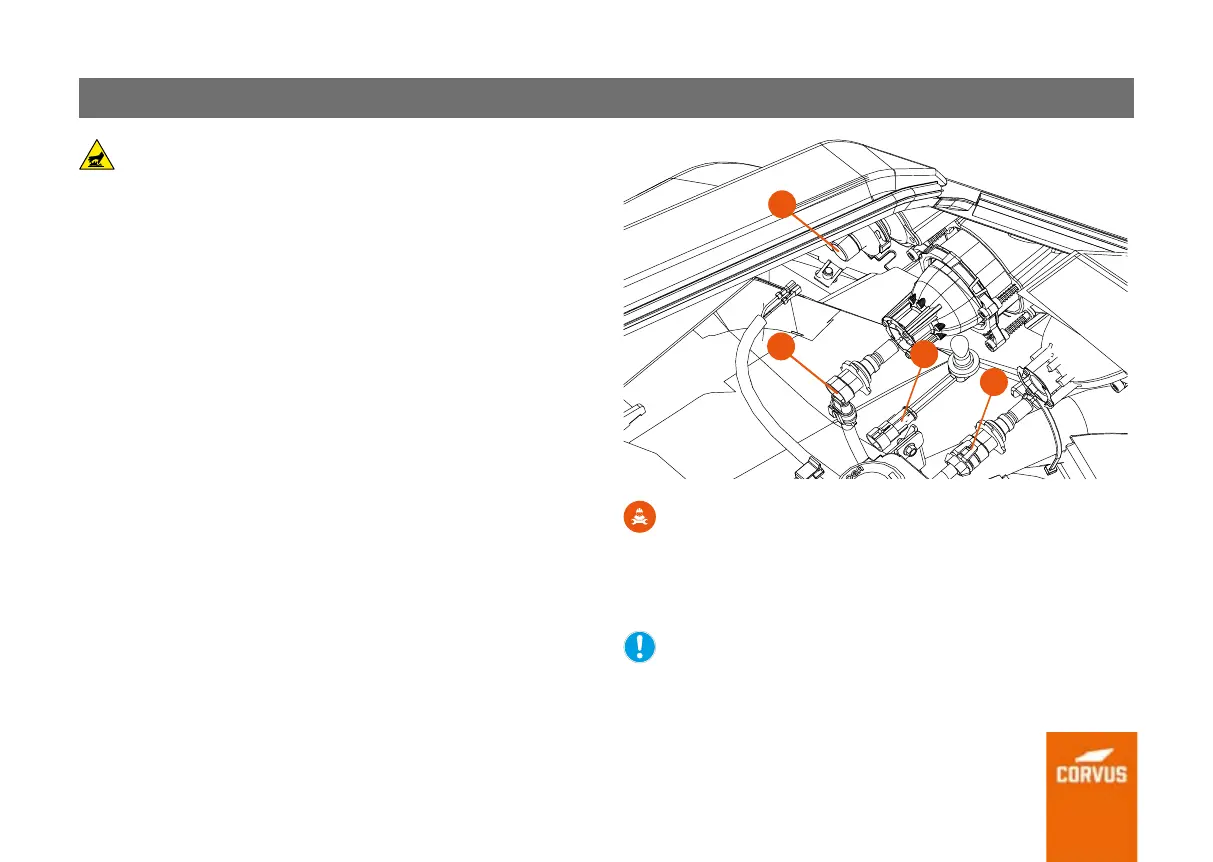

Replacing the turn signal lamps:
1. Unplug the electrical connector (1) of the lamp you are replacing.
2. Turn the bulb counterclockwise to remove it from its housing.
Replacing the long-range lights:
1. Unplug the electrical connector (2) of the lamp you are replacing.
2. Turn the bulb counterclockwise to remove it from its housing.
Replacing the sidelights:
1. Unplug the electrical connector (3) of the lamp you are replacing.
2. Insert your hand beneath the lamp until you touch the light.
3. Turn the bulb counterclockwise to remove it from its housing.
Replacing the indicator lamps:
1. To replace the turn signal lamps, turn the bushing (4)
counterclockwise to disconnect it from its housing.
2. Turn the lamp and separate it from the bushing.
4
3
1
2
TECHNICAL INFORMATION
Dipped beam
lamp: HB3A 12V 60W // Ref. 09180040003
Long-range lamp: HB3 12V 60W // Ref. 08011460000
Sidelights: W5W 12V 5W // Ref: 08011360000
Turn signal lamp 12V 21W //Ref. 08000960000
Do not drive the vehicle without brake, turn signal or sidelights as
these are important safety features.
