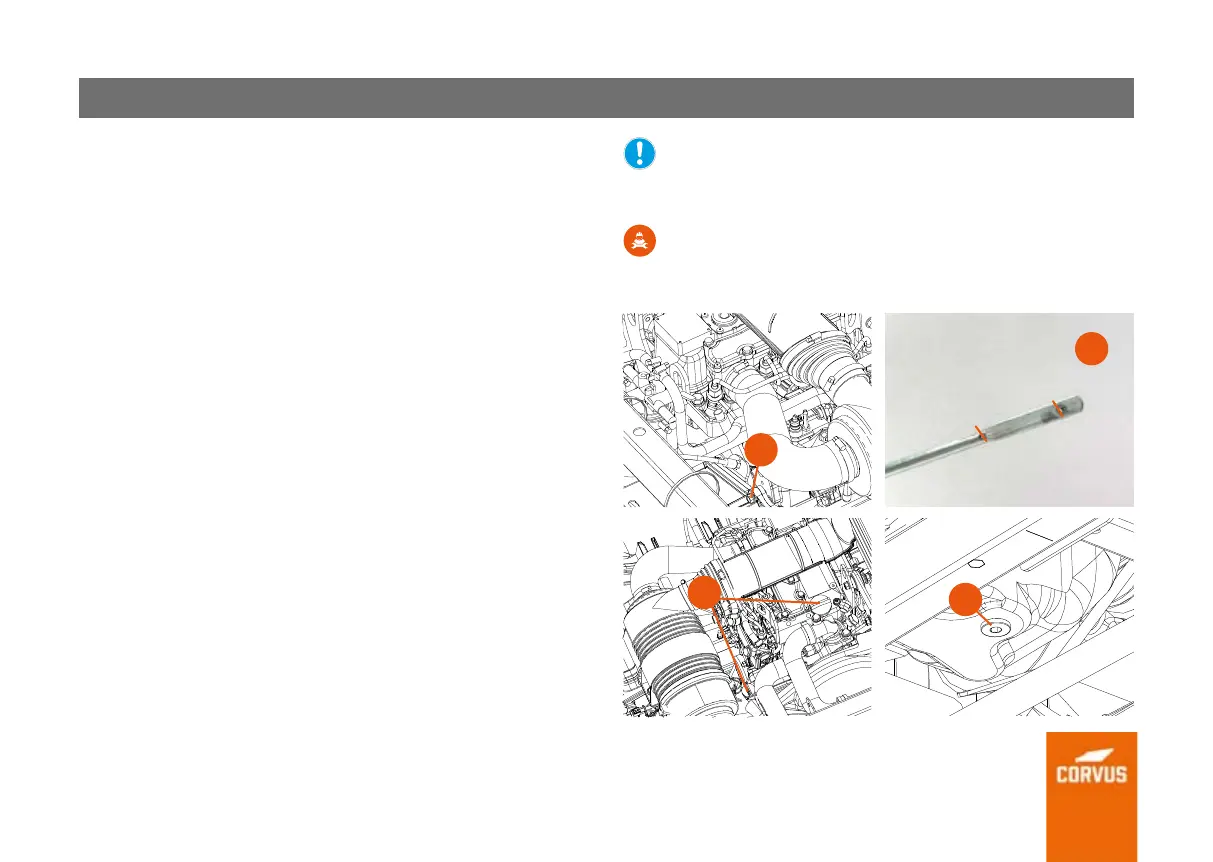

engine oil (level check)
The smooth operation and durability of the transmission and the engine
essentially depend on the oil being kept at the optimum level and being
changed periodically, as indicated in the Service Chart (see page 44/45).
Procedure:
1. Put the vehicle in a horizontal position.
2. Run the engine so that once the oil is warm it can make any sediment rise
up. Then turn it o after a few minutes.
3. Check the oil level using the cap/dipstick (1).
3.1. Remove the cap/dipstick (1) and clean the dipstick with a clean cloth.
3.2. Put it in again to smear it in oil.
3.3. Remove the cap/dipstick (1) and observe the impregnated oil level.
3.4. Put the cap/dipstick in again (1).
4. The oil level should be between the maximum and minimum marks (2)
of the cap/dipstick.
5. If the oil level is too high:
5.1. Place a container under the engine to collect the used oil and avoid
any spillage.
5.2. Remove the excess using the drain cap/screw (4).
5.3. Tighten the cap/screw (4) replacing its washer.
6. If the oil level is too low:
6.1. Fill it up with the required amount of oil, removing either of the two
filler caps (3).
6.2. Make sure to tighten these plugs afterwards (3), maintaining their
O-ring.
7. Run the engine for a few minutes.
8. Stop the engine and after about 5 minutes, check the oil level again.
When filling the tank by adding new oil, you must use the same type
of oil already in the engine.
Perform several checks during refilling, avoiding exceeding the
maximum level.
TECHNICAL INFORMATION: Recommended oil: SAE 15W40 - API
CD, CF, CF-4 and CI-4 / ACEA E-5. Capacity: 1.7 L.
Tighten the drain plug/screw to 58 Nm.
MAX
MIN
1
2
4
3
