GREASE NIPPLES
Your vehicle is equipped with grease nipples to facilitate the lubrication of
certain parts (2 in each rear wheel spindle, 2 in each cardan joint and 1 in
the transmission cardan/output coupling joint.

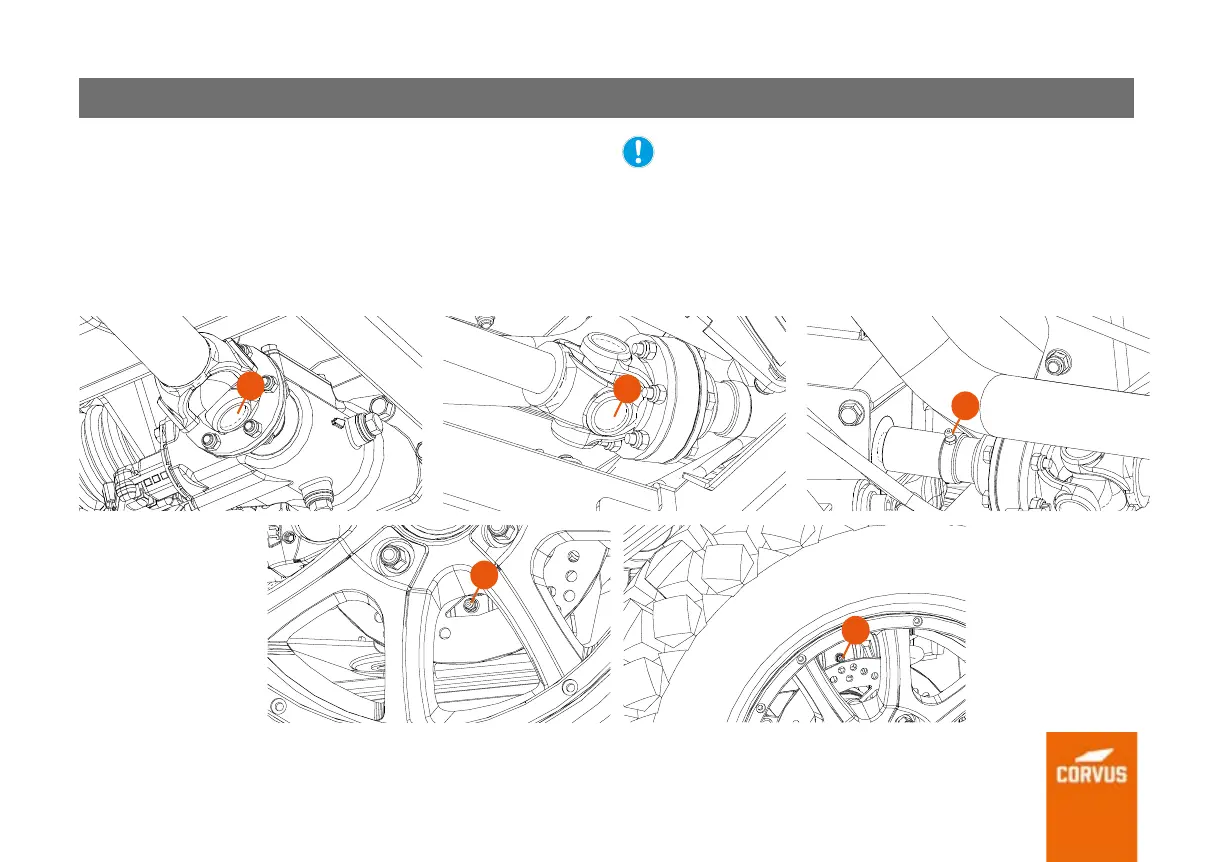

1- Cardan-driveline hub grease nipple.
2- Cardan-driveline hub grease nipple.
3- Driveline coupling grease nipple.
4- Lower rear wheel spindle grease nipple.
5- Upper rear wheel spindle grease nipple.
The indicated points should be lubricated according to the service
chart to prevent rapid wear of the components.
Check regularly to make sure that the grease nipple is still in position.
If it falls out, lubrication may be lost and dust or foreign matter can
get in, which will accelerate the wear of the components.
1
4
5
2
3
