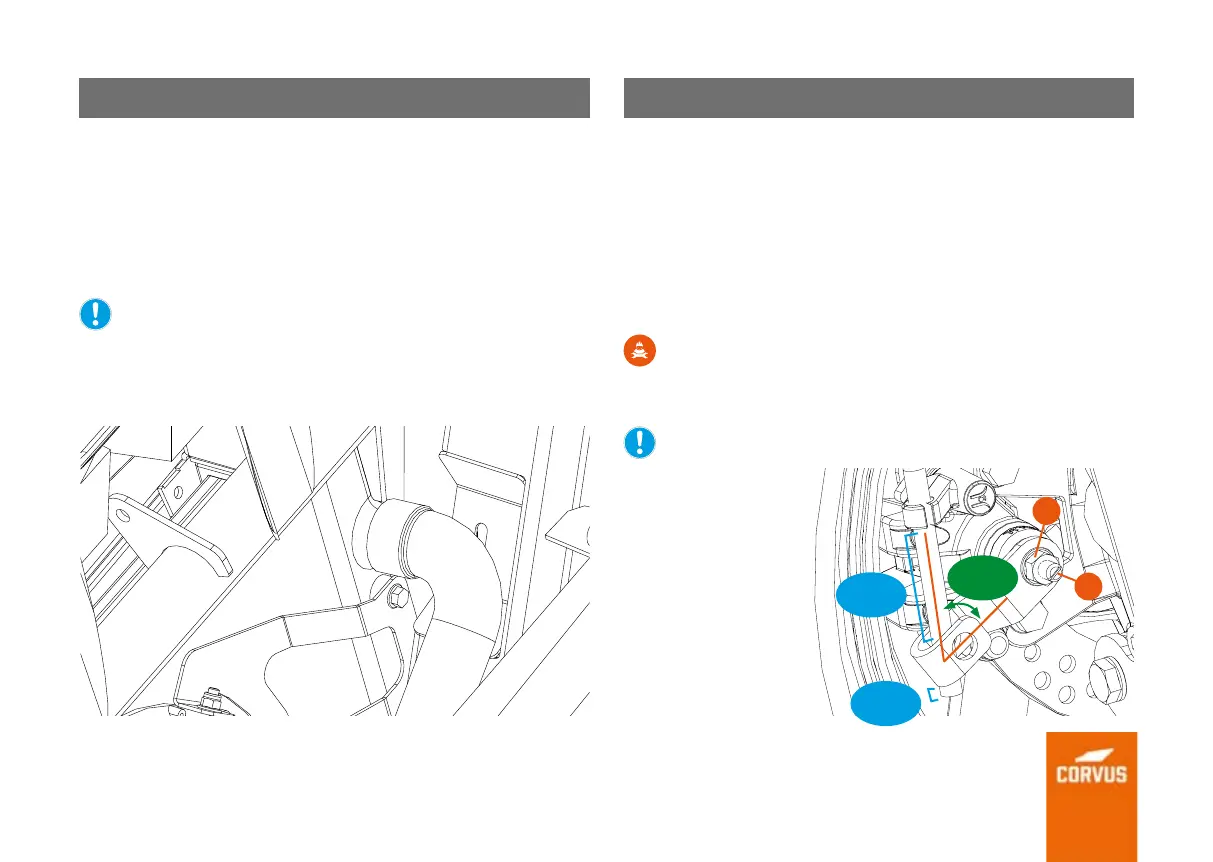

radiator hose ADJUST handbrake
Hosepipes:
Check that the radiator hosepipes do not have cuts or are damaged and
that the connections do not have leaks.
Radiator:
Check that the radiator fins are not obstructed (insects or mud). Clean any
such obstructions with a jet of water at low pressure.
Using high pressure water can damage the radiator fins and diminish
the eectiveness. Do not obstruct or divert the air inlet to the
radiator by installing any unauthorized accessories. Interfering with
the radiator may cause it to overheat and damage the engine.
Replace the radiator if it is damaged or has lost eectiveness.
To adjust the parking brake, follow the procedure below:
Loosen the nut (1) and separate the pads by loosening the axle (2).
Adjust the cable stud so that the distance between the nut and the end of
the stud is 10 mm.
Adjust the cam to the specified dimension (60-61 mm) when the parking
brake is o.
Slowly move the pads towards the disc, tightening the axle (2), until they
touch.
Loosen the axle by 90°, moving the pads away from the disc.
Tighten the nut (1) by holding the axle (2) with a flat screwdriver.
TECHNICAL INFORMATION
The cam must be adjusted in such a way that when the parking brake is
applied to its maximum extent, the angle of the cam with reference to
the cable has to be 85° at the most.
Do not carry out this operation when the handbrake is on. Only activate
it when the nut (1) is tightened.
1
Max
85º
60-61
mm
10mm
2
