9

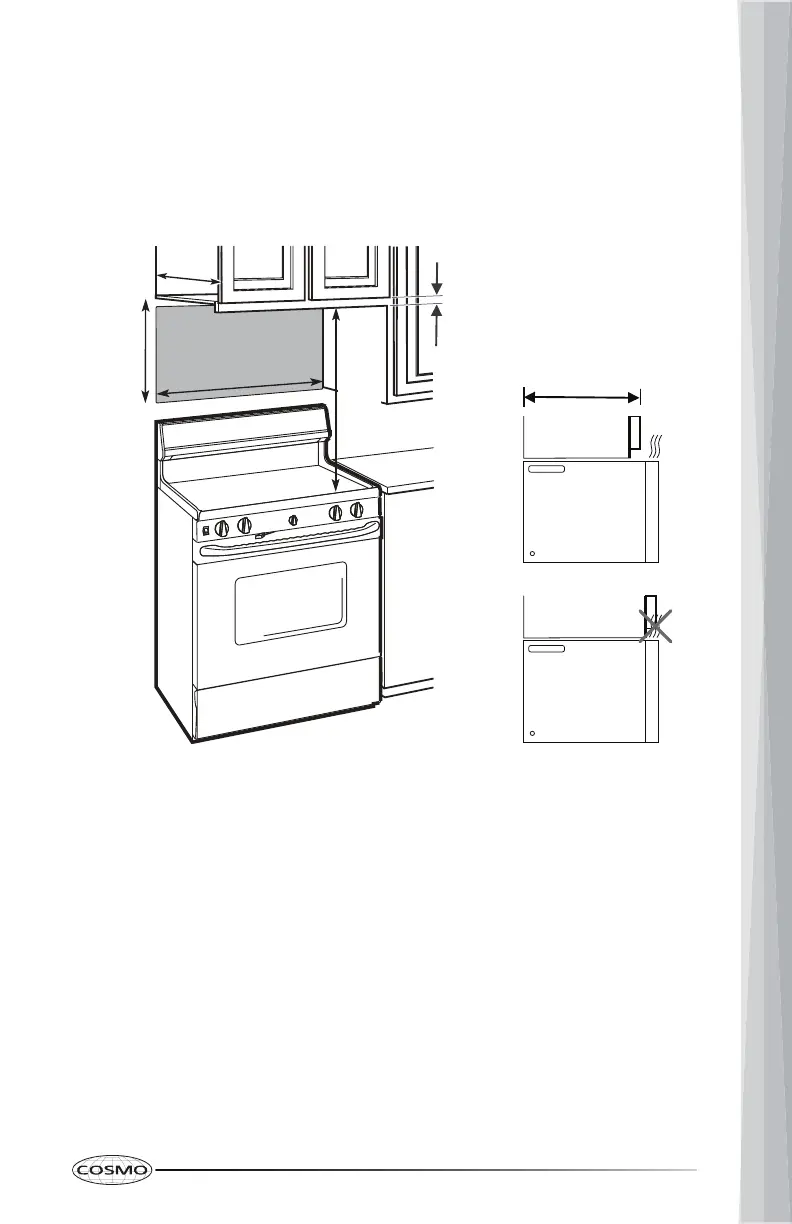

INSTALLATION DIMENSIONS
NOTE: The grounded 3 prong outlet must be inside the upper cabinet. See the
"Electrical Requirements" section.
NOTE:
• 24" (61 cm) top cabinet clearance is typical for 60" (152.4 cm) installation
height from the floor. Exact dimensions may vary depending on type of
range/cooktop below.
• To ensure good performance, do not obstruct top vent airflow. If top
cabinets are deeper than 13.8" (35 cm), the unit must be spaced out from
the wall using adequate materials supporting 150 lbs.
10.3 in
(26.2 cm)
Max.
13.8 in
(35 cm)
Min.
24 in
(61 cm)
30 in
(76.2 cm)
Min.
¹/₄ in
(0.64 cm)
Clearance
Cabinet
Front
Microwave
Oven
Max.
13.8 in
(35 cm)
Cabinet
Front
Microwave
Oven
