26
NOTE: If top cabinets are deeper than 13.8" (35 cm), the unit must be spaced
out from the wall using adequate materials supporting 150 lbs to allow top
vent airflow in the front. These materials are not provided.
1. Review the wood stud screw holes and, if any, toggle bolt holes on the
wall, and remove the rear wall mounting template.
2. Attach the wall mounting plate to the wall with at least one wood screw
on a wall stud, and toggle bolts on drywall without wall stud if
applicable.

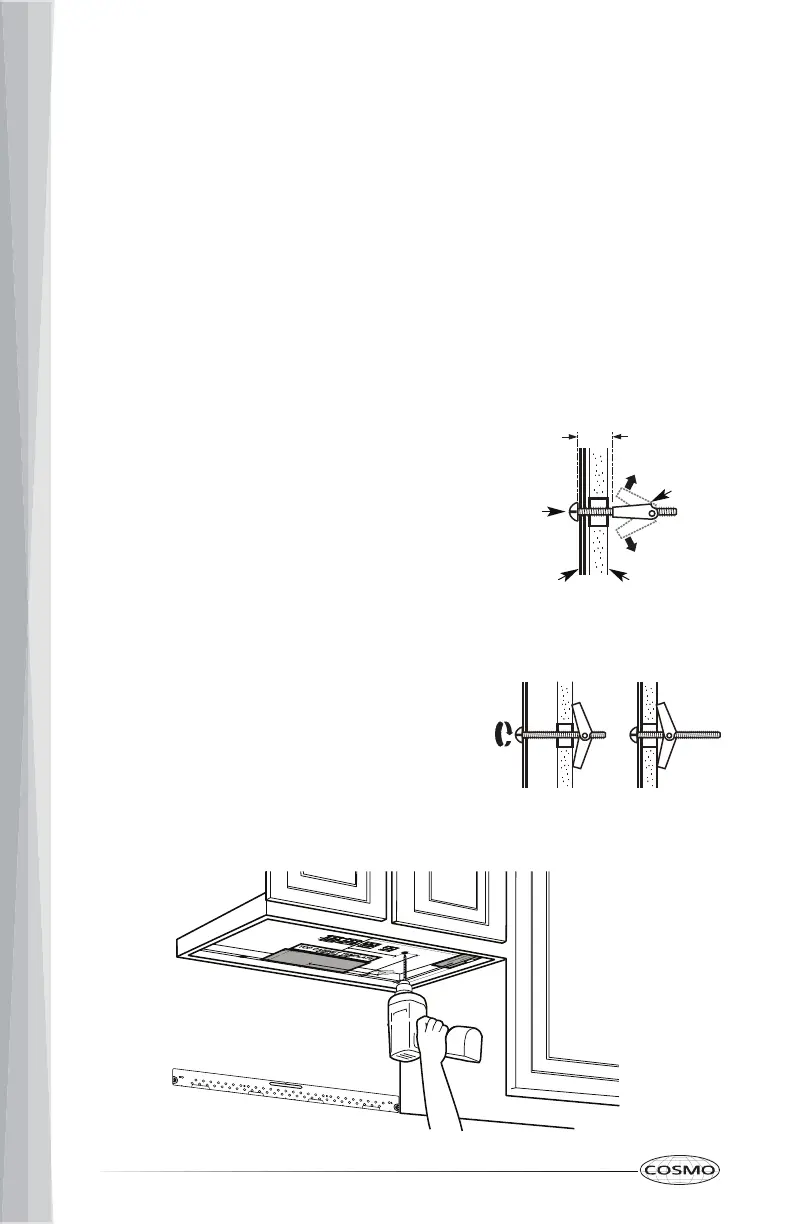

To Use Toggle Bolts
PREPARE TOP CABINET – TOP VENTING
a. Remove the toggle wings from the
bolts.
b. Insert the bolts into the wall mounting
plate through the holes designated to
go into drywall.
c. Reattach the toggle wings to
3
/
4
" (19
mm) onto each bolt.
d. Place the wall mounting plate against
the wall and insert the toggle wings
through the holes into the wall.
e. Carefully pull the wall mounting plate
away from the wall and finger tighten
the bolts to make sure the toggle
wings have opened against the wall.
f. Tighten the bolts.
Wall
Mounting
Plate
Wall
Toggle
Bolt
Toggle
Wings
Toggle
Wings Spacing
To Next Page
