1. Using a stud finder, locate the edges of the wall stud(s) within the 30"
installation space.
NOTE: The center of any adjacent wall studs should be 16" (40.6 cm) or
24" (61 cm) from another.
2. Mark the center of each stud near the bottom of the installation space
and draw a plumb line down each stud center.
DETERMINE WALL MOUNTING PLATE LOCATION
IMPORTANT:
• If top cabinets are deeper than 13.8" (35 cm), the unit must be spaced out
from the wall using adequate materials supporting 150 lbs to allow top
vent airflow in the front. These materials are not provided.
• Before positioning the Rear Wall Mounting Template, use a level to make
sure the cabinet bottom is level.

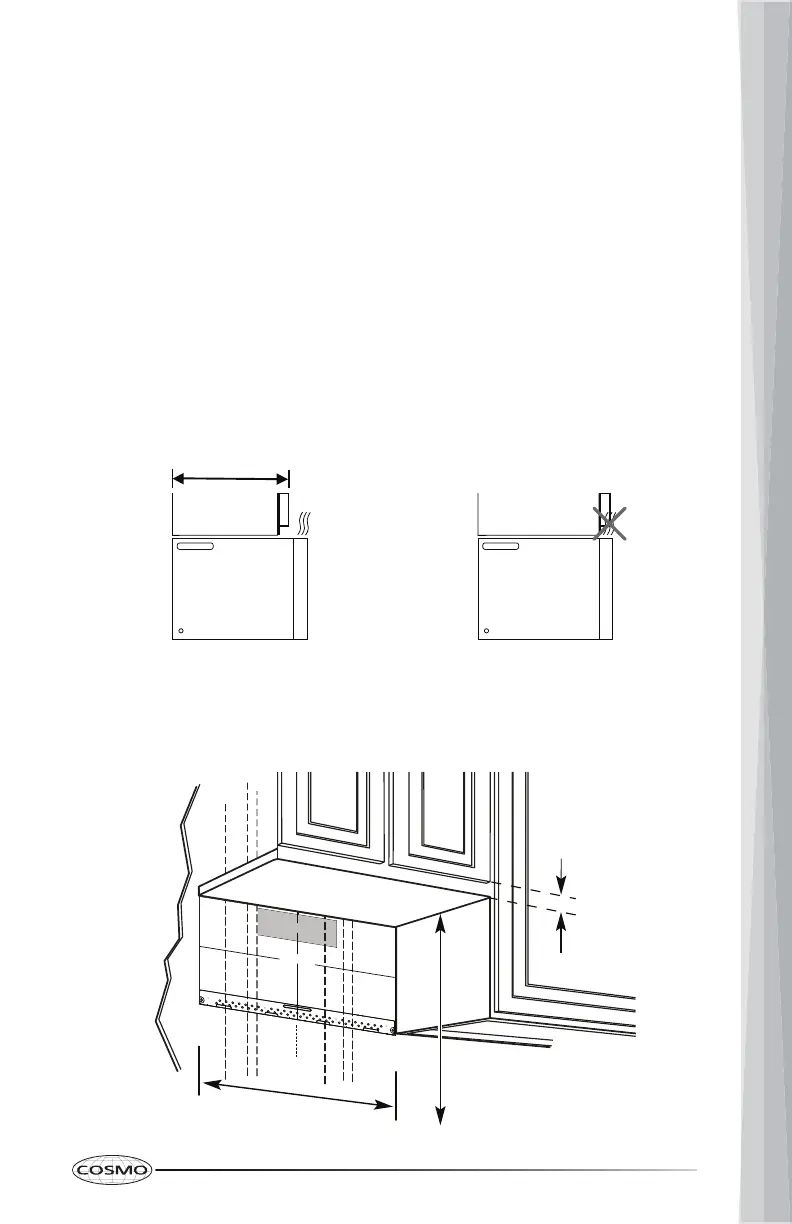

For Cabinet with Flat Bottom:
Max. 13.8 in (35 cm)
Cabinet
Front
Cabinet
Front
1/4 in
Minimum
Clearance
At least 30 in
Minimum
24 in Clearance
to Cooktop
