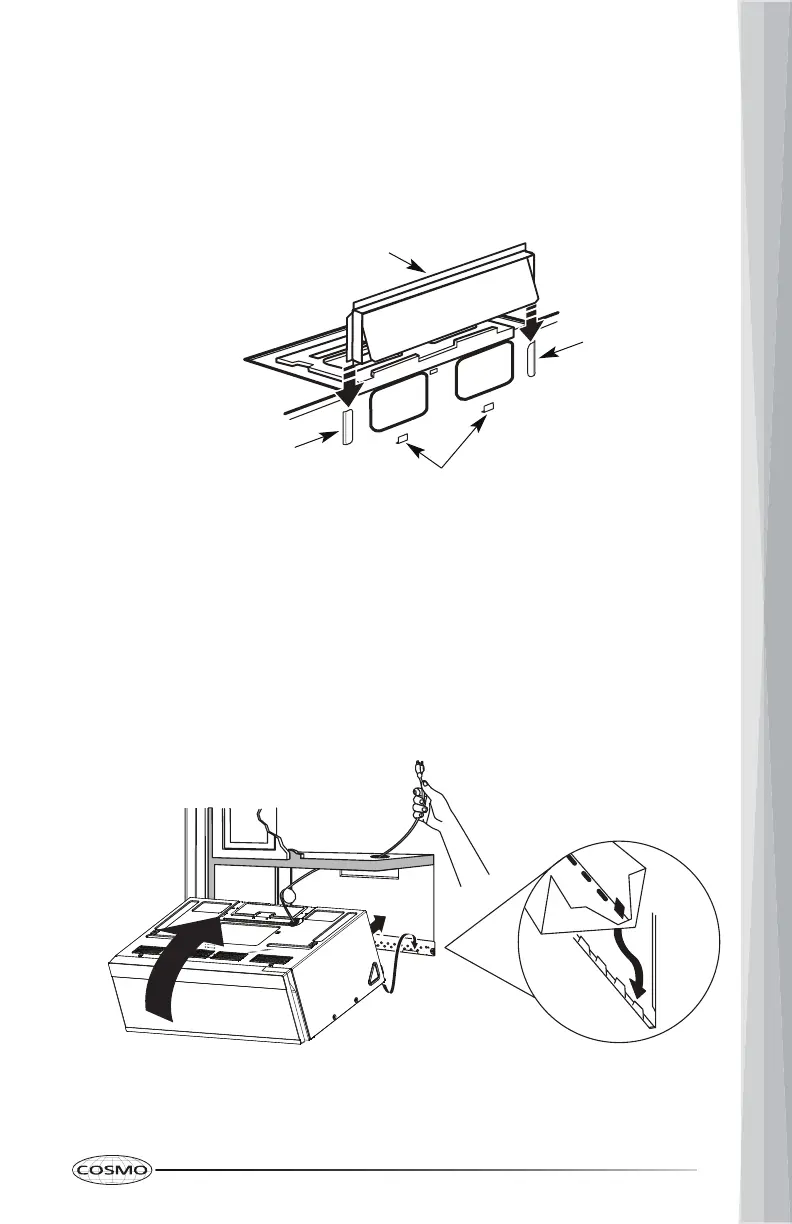

7. Attach the exhaust adapter to the rear by sliding it into the guides and
the locking tabs at the top of the back of the microwave oven. Check and
assure that the exhaust adapter is oriented with its damper hinge at the
top and the damper below swings freely.
NOTE: Appropriate adjustments may be needed to assure proper
alignment with existing duct system after the microwave oven is installed.
INSTALL THE MICROWAVE OVEN – REAR VENTING
1. Make sure the microwave oven door is closed and the microwave oven is
in its upright position.
2. Using 2 or more people, lift and tilt forward the microwave oven and
hang it on support tabs at the bottom of the wall mounting plate.
NOTE: To avoid damage to the microwave oven, do not grip or use the
door or door handle while the microwave oven is being handled.
3. With front of microwave oven still tilted, thread power supply cord
through the power supply cord hole in the bottom of the upper cabinet.
Guide
Guide
Exhaust Adapter
Locking Tabs
