For Cabinet with Front Overhang or Decorative Trim:
Some cabinets may have decorative trim that interferes with the microwave
oven installation. Remove the decorative trim to level and install the
microwave oven properly.
1. Draw a vertical line on the wall at the center of the 30" installation space.
2. Measure the inside depth of the front overhang.
3. Draw a horizontal line on the back wall at equal distance as the inside
depth of the front overhang below the cabinet bottom.
4. Position and tape the Rear Wall Mounting Template on the wall with the
vertical center line on the template and the vertical center line on the wall
aligned and the top edge of the template in contact and level with the
horizontal line drawn.
NOTE: Make sure the plumb line of the each stud center is visible below
the template before taping the template to the wall.

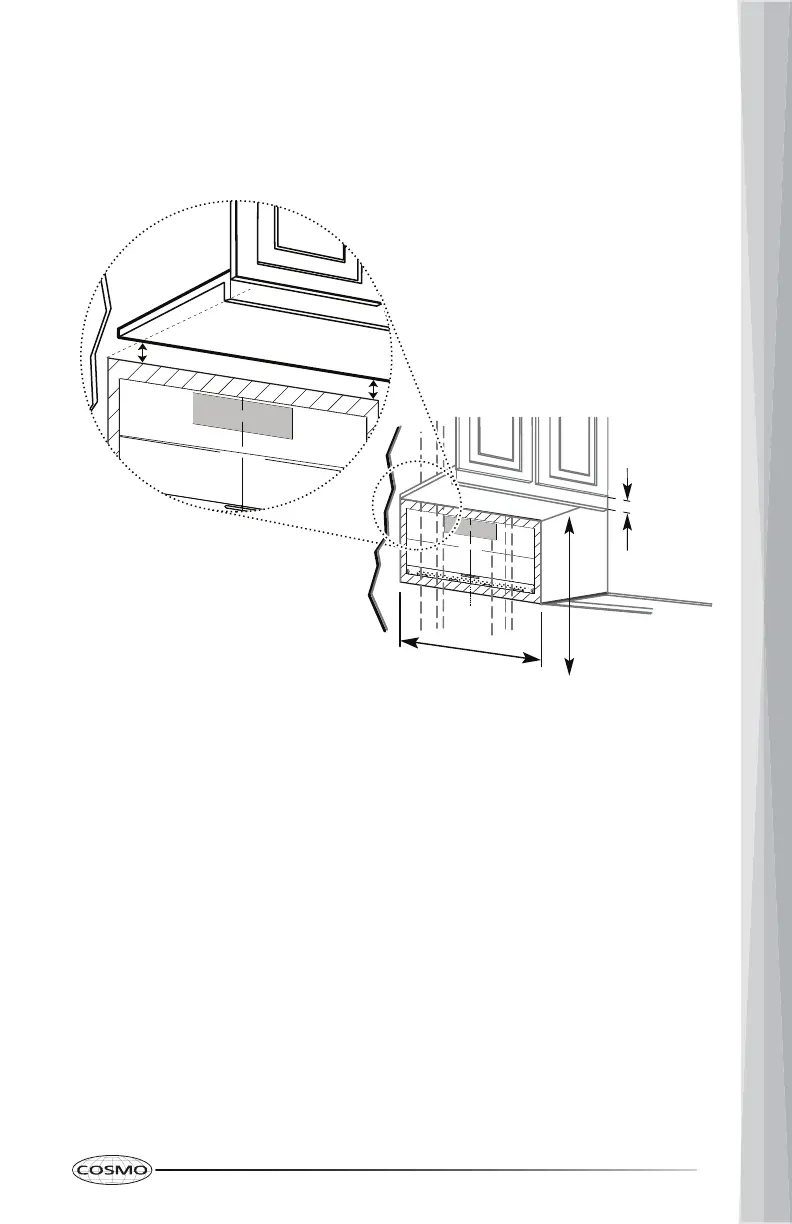

At least 30 in
1/4 in
Minimum
Clearance
Minimum
24 in Clearance
to Cooktop
