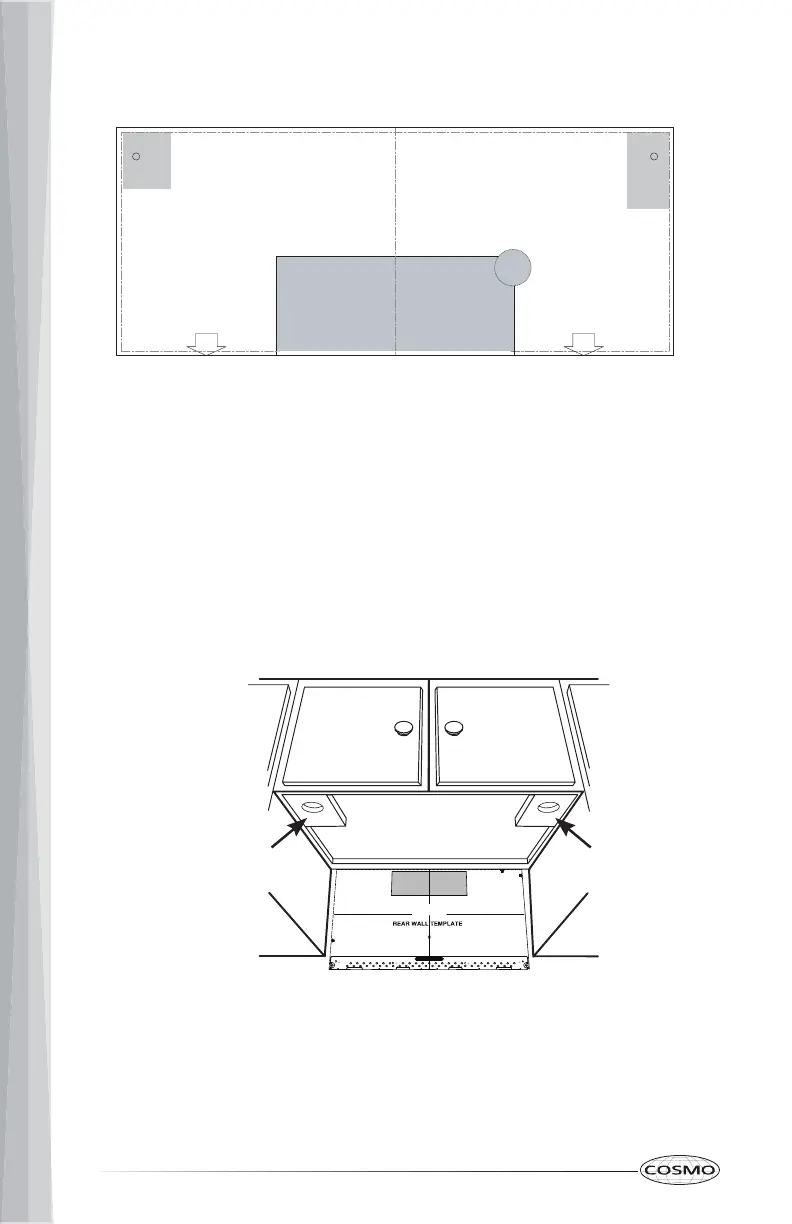

5. Cut out through the cabinet the rectangular top venting area labelled E
on the Top Cabinet Mounting Template.
6. Remove the Top Cabinet Mounting Template.
7. For recessed cabinets:
• Make 2 filler blocks out of scrap wood the size of the shaded
rectangles labelled F and G. The filler blocks must have a thickness
equal to the depth of the cabinet recess.
• Drill a
1
/
2
" diameter hole in the filler blocks to line up with screw holes
A and B.
• The filler blocks should be placed in later steps so that the hole in
each block lines up with the corresponding screw hole in the cabinet.
Filler Block
Filler Block
E
