36
3. Follow the instructions on the Top Cabinet Mounting Template to drill the
3
/
8
" diameter screw holes labelled A and B.
CAUTION: Wear safety goggles when drilling holes in the cabinet bottom.
4. Follow the instructions on the Top Cabinet Mounting Template to cut out
the 2" diameter power cord hole labelled D. If cabinet bottom material is
metal, use the nylon grommet provided to surround the cutout opening
and protect the power cord from sharp cutout edges.
5. Remove the Top Cabinet Mounting Template.

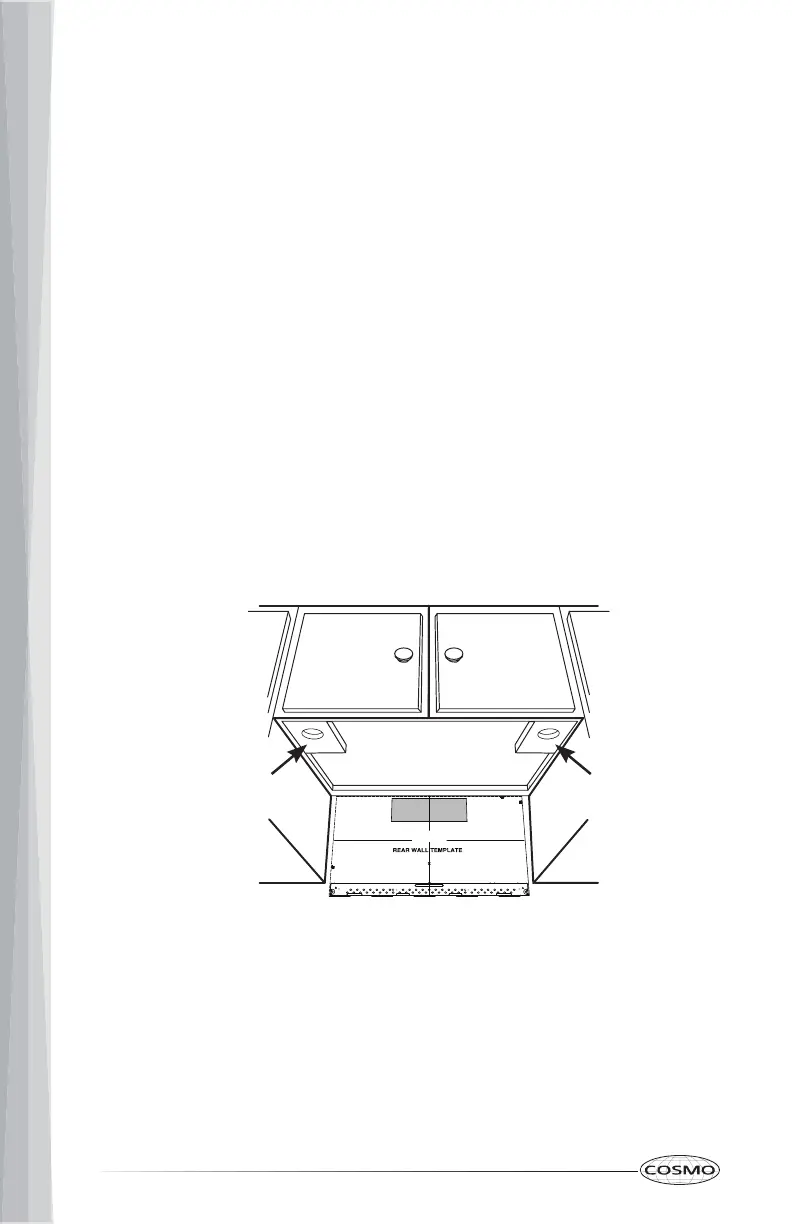

6. For recessed cabinets:
• Make 2 filler blocks out of scrap wood the size of the shaded
rectangles labelled F and G. The filler blocks must have a thickness
equal to the depth of the cabinet recess.
• Drill a
1
/
2
" diameter hole in the filler blocks to line up with screw holes
A and B.
• The filler blocks should be placed in later steps so that the hole in
each block lines up with the corresponding screw hole in the cabinet.
Filler Block
Filler Block
