25) Ensure the Covana cover is correctly aligned
with the hot tub. Use a measuring tape on all
four sides and make sure it is still resting on the
foam spacers. If not, center the Covana cover,
using a measuring tape on all four sides.
26) Verify whether all the posts are vertically leveled
with a 48″ (122 cm) level. You will need to verify
the front and right sides of each post with the
level.
27) Install the first corner bracket (Figure 68).
Fasten the bracket to the cover with four Phillips
M6 x 20mm bolts and 5/16″ painted metal
washers.
WARNING
 Ensure the sleeve is correctly pressed against
the outer shell before screwing in the M6x20 mm
screws.
Note: Follow the patterns shown for installing the
bolts (A to D). (Figure 68)
Note: We recommend placing the rounded edge
of the corner bracket on the lower end. (Figure
68)
28) Repeat step 27 for each remaining corner
bracket, follow the order of installation as shown
in Figure 69, 1 to 4.

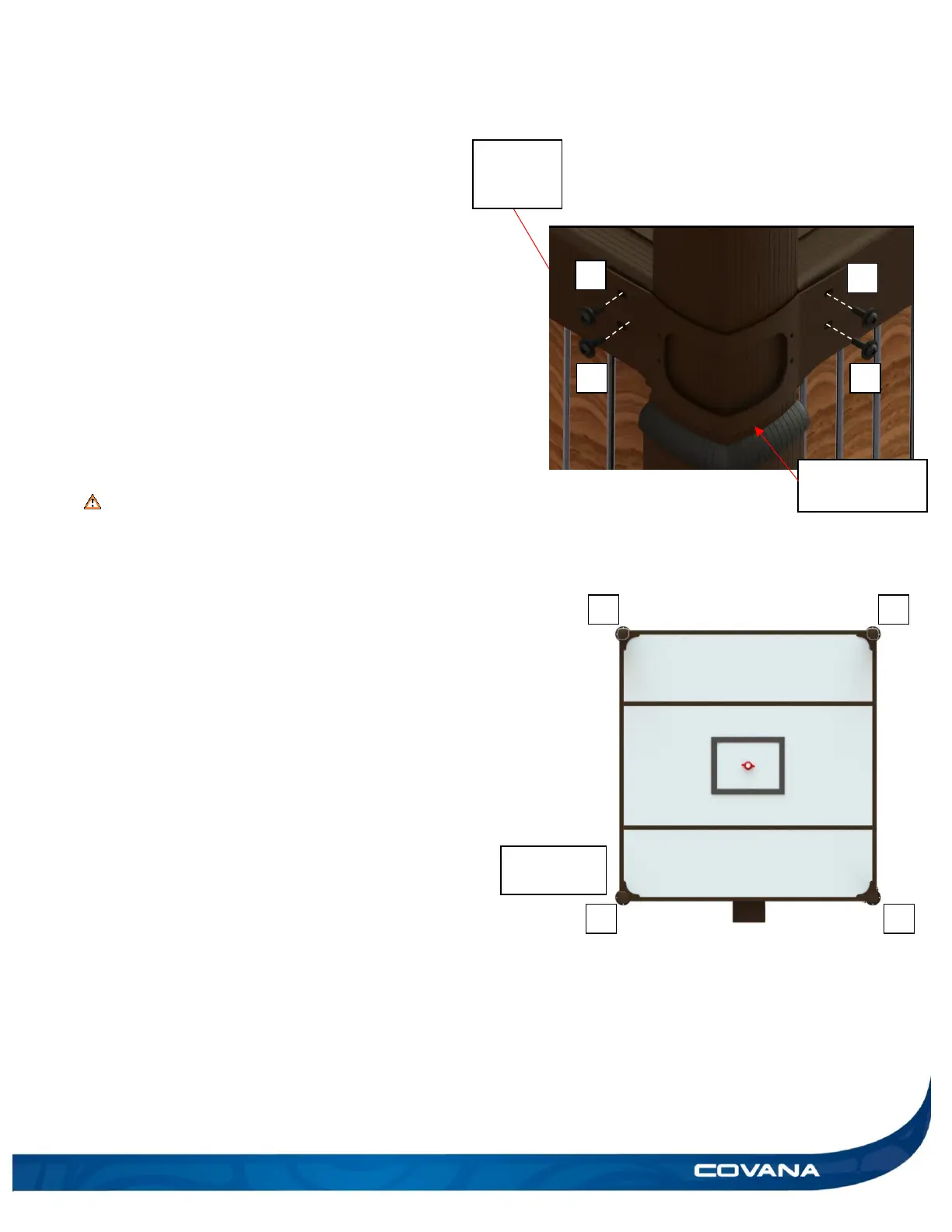

Figure 68
Figure 69
1
2
3
4
First corner
bracket
Painted
washer
5/16″
A
D
C
B
Rounded edge
of bracket
Figure 68
